Product Description
MS400 ECG simulator
Introduction

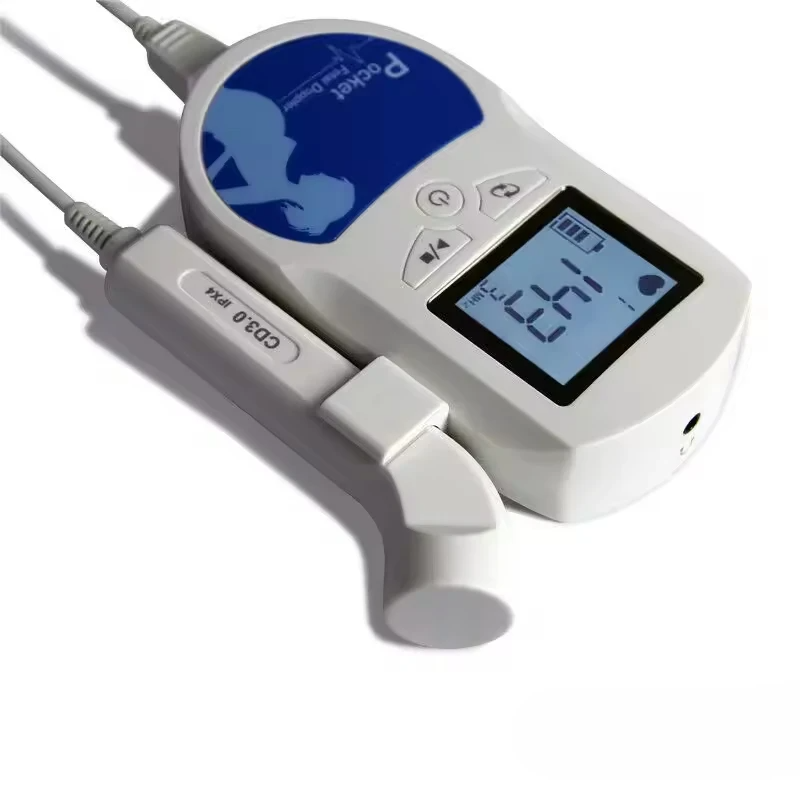

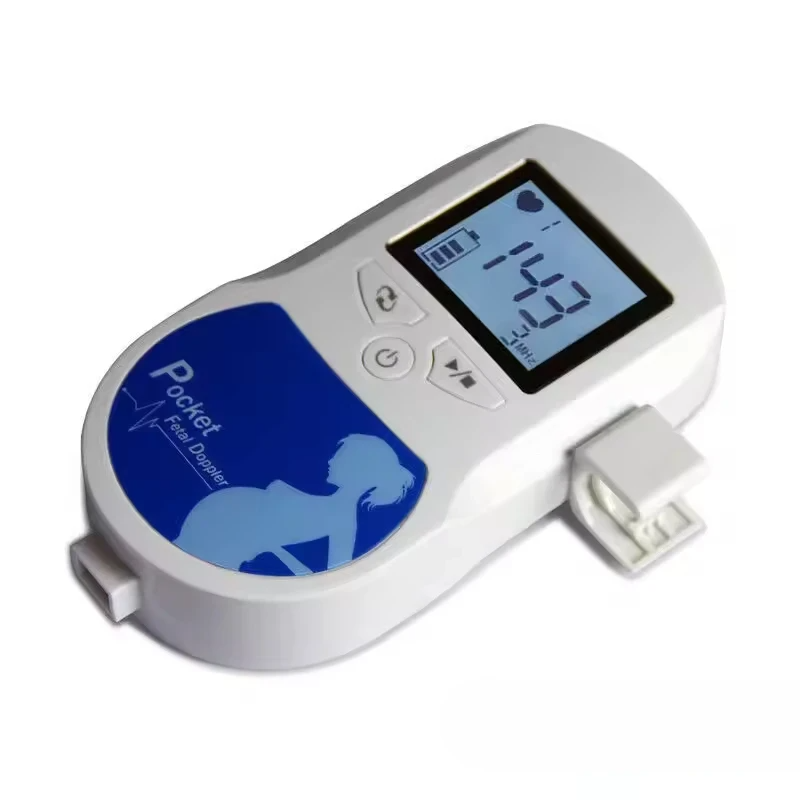

Sonoline A Pocket Fetal Doppler is a hand-held fetal heart rate detecting device adopted Doppler theory. It displays fetal heart rate on digital LCD screen. With easy and convenient operation, it can be used in hospital and clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.
Sonoline A Pocket Fetal Doppler is a hand-held fetal heart rate detecting device adopted Doppler theory. It displays fetal heart rate on digital LCD screen. With easy and convenient operation, it can be used in hospital and clinic for daily self-check by pregnant woman, realizing early monitoring and care for life.
Features
1) Delicate and compact design, portable and easy to use
2) Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanized design.
3) Three working mode: Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode
4) High precision FHR digital LCD screen
5) Probe falls off detection, battery status indication
6) Pluggable USB probe interface, probe can be replaced
7) Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute.
8) Audio interface: Can be connected to other recording devices by recording cable, record fetal heart sound in real-time
9) Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use
1) Delicate and compact design, portable and easy to use
2) Crooked probe structure, which is easy to operate and increases the feeling of comfort, embodies the humanized design.
3) Three working mode: Real-time FHR Display Mode, Averaged FHR Display Mode and Manual Mode
4) High precision FHR digital LCD screen
5) Probe falls off detection, battery status indication
6) Pluggable USB probe interface, probe can be replaced
7) Automatic shutdown: The device will automatically turn off if there is no signal within 1 minute.
8) Audio interface: Can be connected to other recording devices by recording cable, record fetal heart sound in real-time
9) Two 1.5V batteries (AA LR6) can last more than 8 hours for normal use
Performance
1) Safety classification: internally powered equipment, type CF applied part
2) Display: 38 mm × 32 mm LCD screen
3) Range of fetal heart rate: 50 BPM ～ 240 BPM (BPM: beats per minute)
4) Resolution: 1 BPM
5) Accuracy: ± 2 BPM
6) Power consumption: ＜1 W
7) Rated operational voltage: DC3 V
8) Battery: two 1.5V batteries (type: AA LR6)
Probe
1) Nominal Frequency: 2.0 MHz
2) Working Frequency: 2.0 MHz ± 10%
3) Maximum Output Sensitivity: ≥90 dB
4) Ultrasonic Output Power: P ＜ 20 mW
5) Negative Peak Sound Pressure: P_ ＜ 1 MPa
6) Output Beam Intensity: Iob ＜ 20 mW/cm2
7) Spatial-peak Temporal-average Derived Intensity: Ispta ＜ 100 mW/cm2
8) Working Mode: Continuous wave doppler
9) Effective Radiating Area of Transducer: < 157 mm2
1) Safety classification: internally powered equipment, type CF applied part
2) Display: 38 mm × 32 mm LCD screen
3) Range of fetal heart rate: 50 BPM ～ 240 BPM (BPM: beats per minute)
4) Resolution: 1 BPM
5) Accuracy: ± 2 BPM
6) Power consumption: ＜1 W
7) Rated operational voltage: DC3 V
8) Battery: two 1.5V batteries (type: AA LR6)
Probe
1) Nominal Frequency: 2.0 MHz
2) Working Frequency: 2.0 MHz ± 10%
3) Maximum Output Sensitivity: ≥90 dB
4) Ultrasonic Output Power: P ＜ 20 mW
5) Negative Peak Sound Pressure: P_ ＜ 1 MPa
6) Output Beam Intensity: Iob ＜ 20 mW/cm2
7) Spatial-peak Temporal-average Derived Intensity: Ispta ＜ 100 mW/cm2
8) Working Mode: Continuous wave doppler
9) Effective Radiating Area of Transducer: < 157 mm2

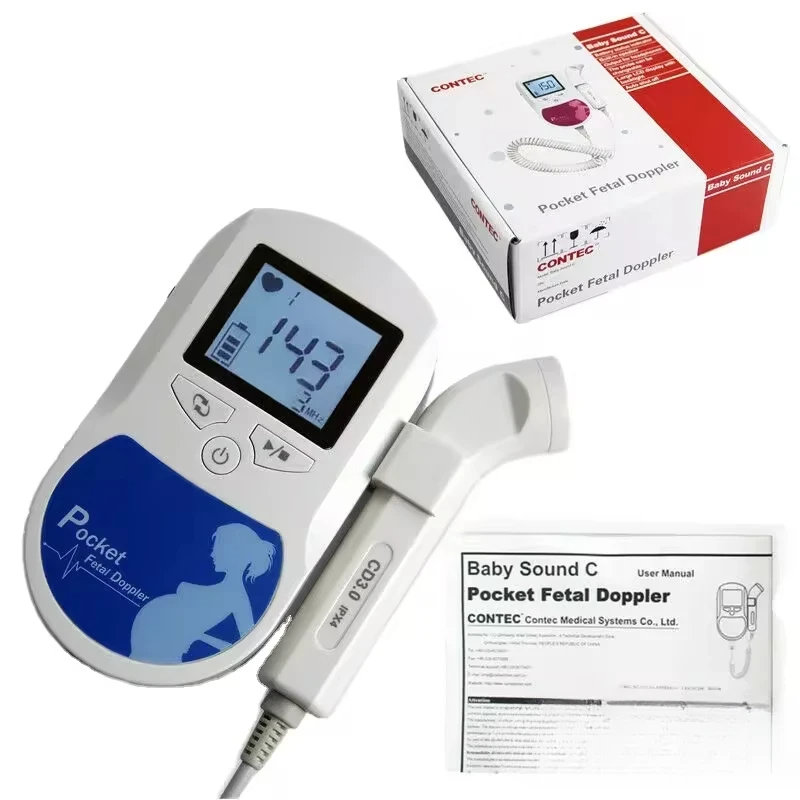

Accessories
User manual 1
3MHz crooked probe 1
User manual 1
3MHz crooked probe 1
Physical characteristic
Dimension: 135 mm(L)×92 mm(W)×29 mm(H)
Weight: about 245 g
Dimension: 135 mm(L)×92 mm(W)×29 mm(H)
Weight: about 245 g
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
| Brand Name | JYTOP |
|
Model Number
|
Baby Sound C
|
|
Power Source
|
Electric
|
|
Warranty
|
1 Year
|
|
After-sale Service
|
Online technical support
|
|
Power Supply Mode
|
Built-in Battery
|
|
Material
|
Plastic
|
|
Shelf Life
|
1 year
|
|
Quality Certification
|
ce
|
|
Instrument classification
|
Class II
|
|
Safety standard
|
None
|
