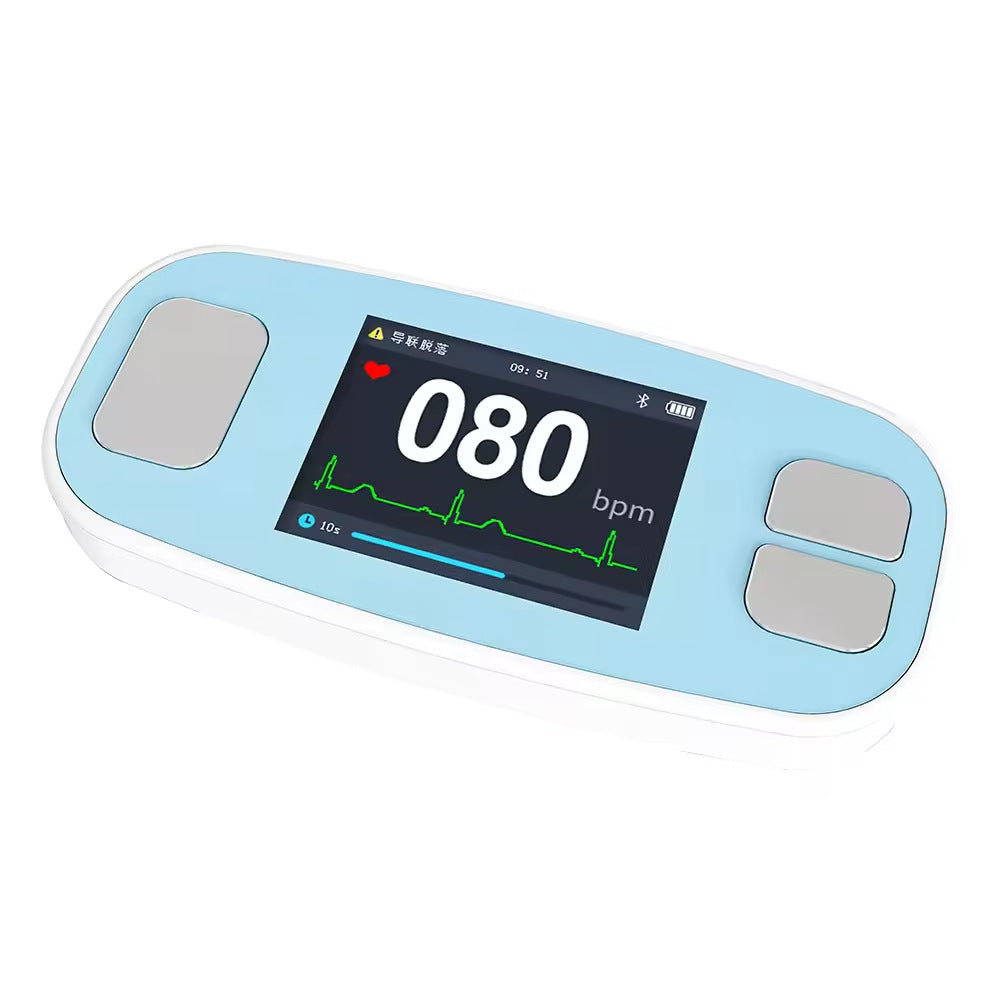

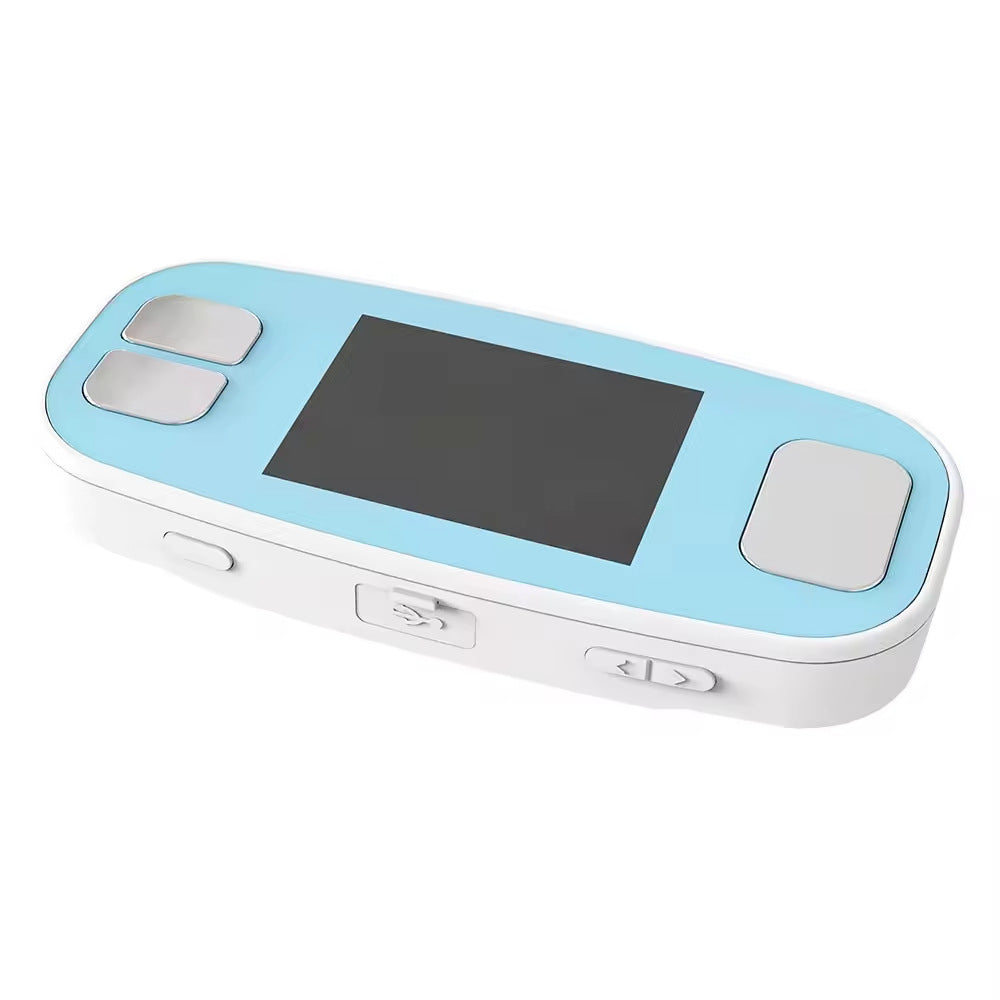

JYTOP PM20 Portable Holter ECG Monitor Device 6 Leads Ecg Machine

Products Description

PM20 Portable ECG Monitor is a device for checking ECG,which is applicable for family and individual user, it is a good helper to early prevent from cardiovascular diseases and reduce risks. Intelligent design, achieves remote health management by using with mobile application, it can automatically start measurement, store ECG, upload data, download health conclusion and obtain doctor advice at the first moment. Features 1)2.4" color TFT-LCD 2)Quickly to check ECG once finger touching, convenient to get one or six lead electrocardiogram. 3)Accurate conclusion can be obtained immediately after measuring. 4)The built-in rechargeable lithium battery can continuously record for up to 500 cases in full charging. 5)Bletooth transmission. 6)ECG data can be saved to CLOUD Platform permanently, convenient to check and analyze. 7)Historical data can be reviewed dynamically,Provide lively viewing. 8)Historical data can be printed at any time, convenient to diagnose. Performance Lead: Standard 6 leads,I/ II /III/aVR/aVL/aVF Calibration voltage：1mV±5% Standard sensitivity：10mm/mV±5% Amplitude frequency characteristic： standard: 10Hz，1Hz～20Hz；(+0.4dB，-3dB) Noise level：≤30μV CMRR：≥60dB Scanning speed：25mm/s±5% Sampling rate：250 dots/s HR measurement range：30bpm～300bpm，error： ±1bpm or 1% Type of protection against electric shock: Internal power device Degree of protection against electric shock: Type BF applied part Degree of waterproof: IP22 Accessories 1.Power cord, 1 2.User manual, 1 Physical Characteristic Dimension: 122mm(L)×56mm(W)×17mm(H) Weight: 84g
