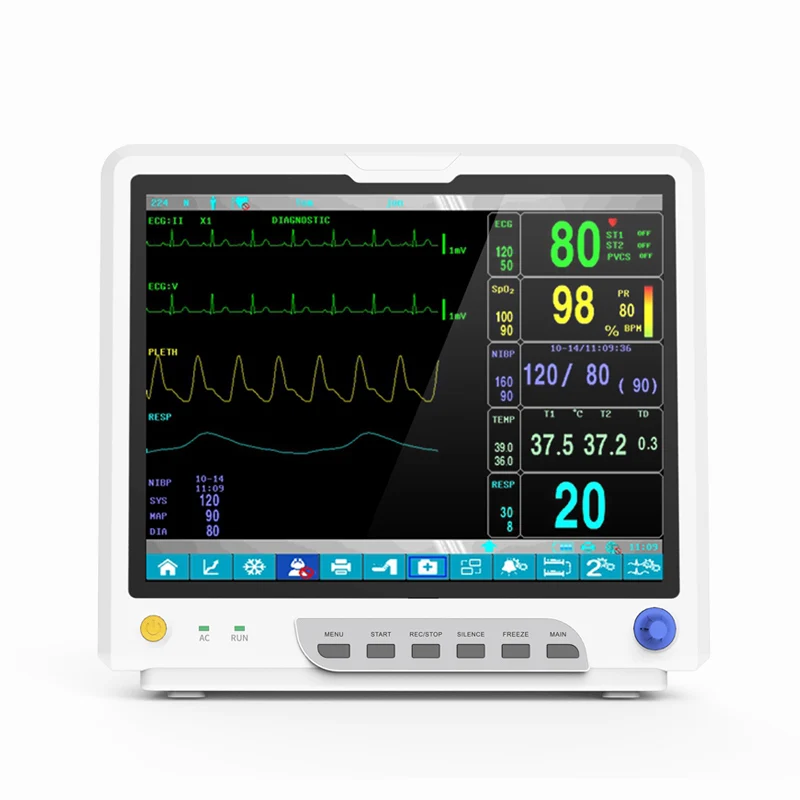

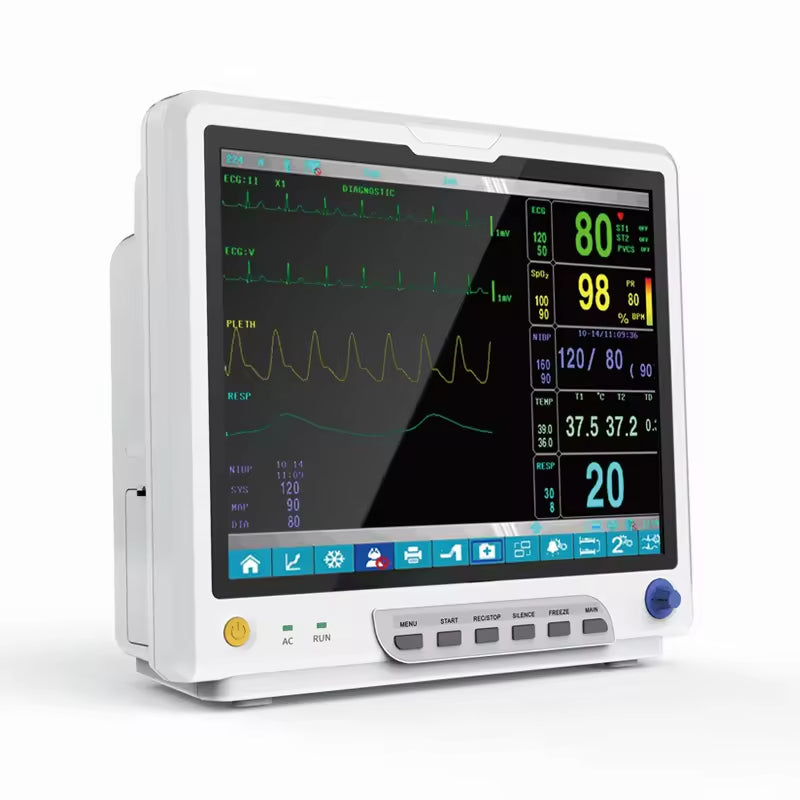

JYTOP CMS9200PLUS Touch Screen 15 Inch Multipara Patient Monitor
JYTOP CMS9200PLUS Touch Screen 15 Inch Multipara Patient Monitor
Precio habitual
$980.00 USD
Precio habitual
Precio de oferta
$980.00 USD
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Products Description
Introduction
This equipment is a portable monitor with touch screen, which can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-
channel TEMP. It integrates parameter measurement module, display and recorder in one device to form a compact and portable
equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.
Functions
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Pulse oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
6)CO2 (optional) EtCO2, INSCO2, AWRR
7)IBP (optional) CH1：SYS，DIA，MAP
CH2：SYS，DIA，MAP
IBP waveform
It has abundant functions, such as, touch-screen operation, audible and visual alarm, trend data storage and output, NIBP
measurement, alarm event marking and drug concentration calculation, etc.
Features
1)15'' TFT color LCD,multi-language interface(English,Chinese,Russian,Kazakhstan,Czech, Slovak,Spanish).
2)Touch screen operation, which improves the working efficiency for medical staff.
3)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
4)All-round monitor for adult, pediatric and neonate.
5)With standard interface, big character interface and oxyCRG, convenient to observe.
6)Waveform, parameter color and location can be set optionally.
7)Display up to 8-channel waveform on one screen.
8)Display 7-lead ECG waveform on one screen.
9)Adopt digital SpO2 technology, anti-ambient light interference, and measurement can be performed under the circumstance of weak
filling.
10)NIBP measurement mode: Manual/AUTO/Continuous, storage for 4800-group NIBP data.
11)Review for 72 alarm events of all parameters and 60 arrhythmia alarm events.
12)Drug concentration calculation and titration table functions.
13)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
14)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
15)Defibrillation-proof(special leads are necessary).
This equipment is a portable monitor with touch screen, which can monitor such parameters as ECG, RESP, SpO2, PR, NIBP and dual-
channel TEMP. It integrates parameter measurement module, display and recorder in one device to form a compact and portable
equipment. At the same time, its built-in replaceable battery provides convenience for patient moving.
Functions
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1)ECG Heart rate(HR)
ECG waveform
Arrhythmia and ST-segment analysis
2)RESP Respiration rate(RR)
Respiration waveform
3)SpO2 Pulse oxygen saturation(SpO2)
Plethysmogram(PLETH) waveform
Pulse rate(PR)
Bar graph
4)NIBP Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5)TEMP T1, T2, TD
6)CO2 (optional) EtCO2, INSCO2, AWRR
7)IBP (optional) CH1：SYS，DIA，MAP
CH2：SYS，DIA，MAP
IBP waveform
It has abundant functions, such as, touch-screen operation, audible and visual alarm, trend data storage and output, NIBP
measurement, alarm event marking and drug concentration calculation, etc.
Features
1)15'' TFT color LCD,multi-language interface(English,Chinese,Russian,Kazakhstan,Czech, Slovak,Spanish).
2)Touch screen operation, which improves the working efficiency for medical staff.
3)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.
4)All-round monitor for adult, pediatric and neonate.
5)With standard interface, big character interface and oxyCRG, convenient to observe.
6)Waveform, parameter color and location can be set optionally.
7)Display up to 8-channel waveform on one screen.
8)Display 7-lead ECG waveform on one screen.
9)Adopt digital SpO2 technology, anti-ambient light interference, and measurement can be performed under the circumstance of weak
filling.
10)NIBP measurement mode: Manual/AUTO/Continuous, storage for 4800-group NIBP data.
11)Review for 72 alarm events of all parameters and 60 arrhythmia alarm events.
12)Drug concentration calculation and titration table functions.
13)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.
14)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.
15)Defibrillation-proof(special leads are necessary).
Accessories
●Adult fingertip SpO2 probe (5-pin)
●Adult NIBP cuff
●NIBP extension tube
●ECG lead cable
●ECG electrode
●Temperature probe
●Power cord
●User Manual
●Adult fingertip SpO2 probe (5-pin)
●Adult NIBP cuff
●NIBP extension tube
●ECG lead cable
●ECG electrode
●Temperature probe
●Power cord
●User Manual
