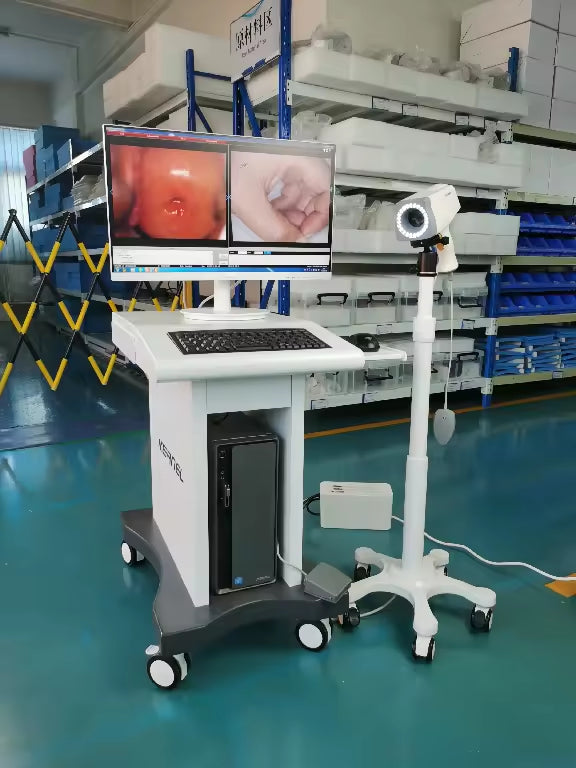

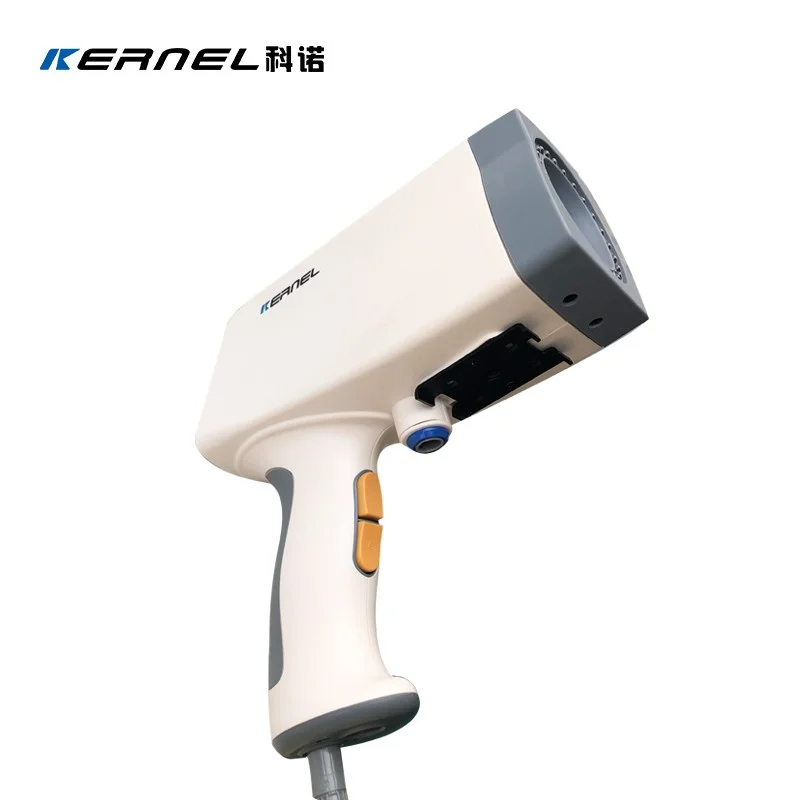

JYTOP KN-2200 Portable Mini Digital Video Colposcope with LED Camera System for Gynecology

JYTOP KN-2200 Portable Mini Digital Video Colposcope with LED Camera System for Gynecology

$2,300.00 USD
$2,300.00 USD
할인 품절
배송료는 결제 시 계산됩니다.
Plug
Product Description
Product name
Video Electronic COLPOSCOPE GYNECOLOGY
High resolution camera
1/3" Sony CCD,800,000 Effective pixels.

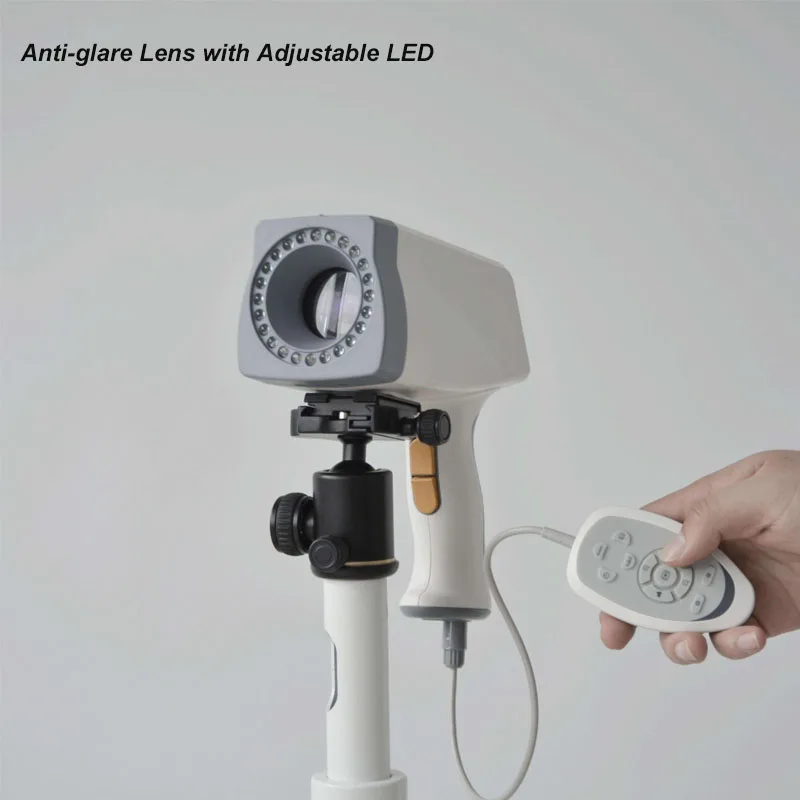

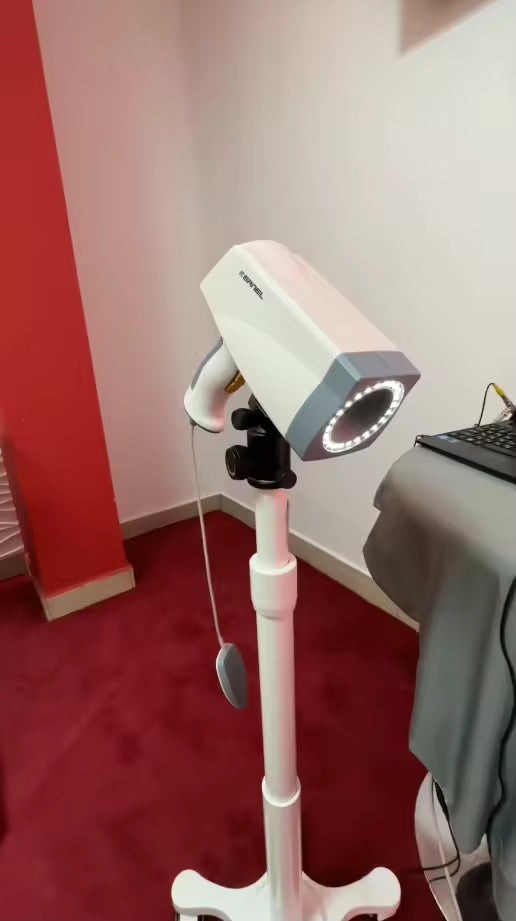

Unique LED light
20pcs LED beads in annular arrangement.
8 operating languages
Spanish, English, Russian, Turkish, France, Vietnamese, Chinese, Italian
Resolution
800,000 Pixels
Light source
20 Groups adjustable Leds
Focus
20x Optical Zoom in&out (Auto & Manual)
Filter
4-Level Green Filter
Feature

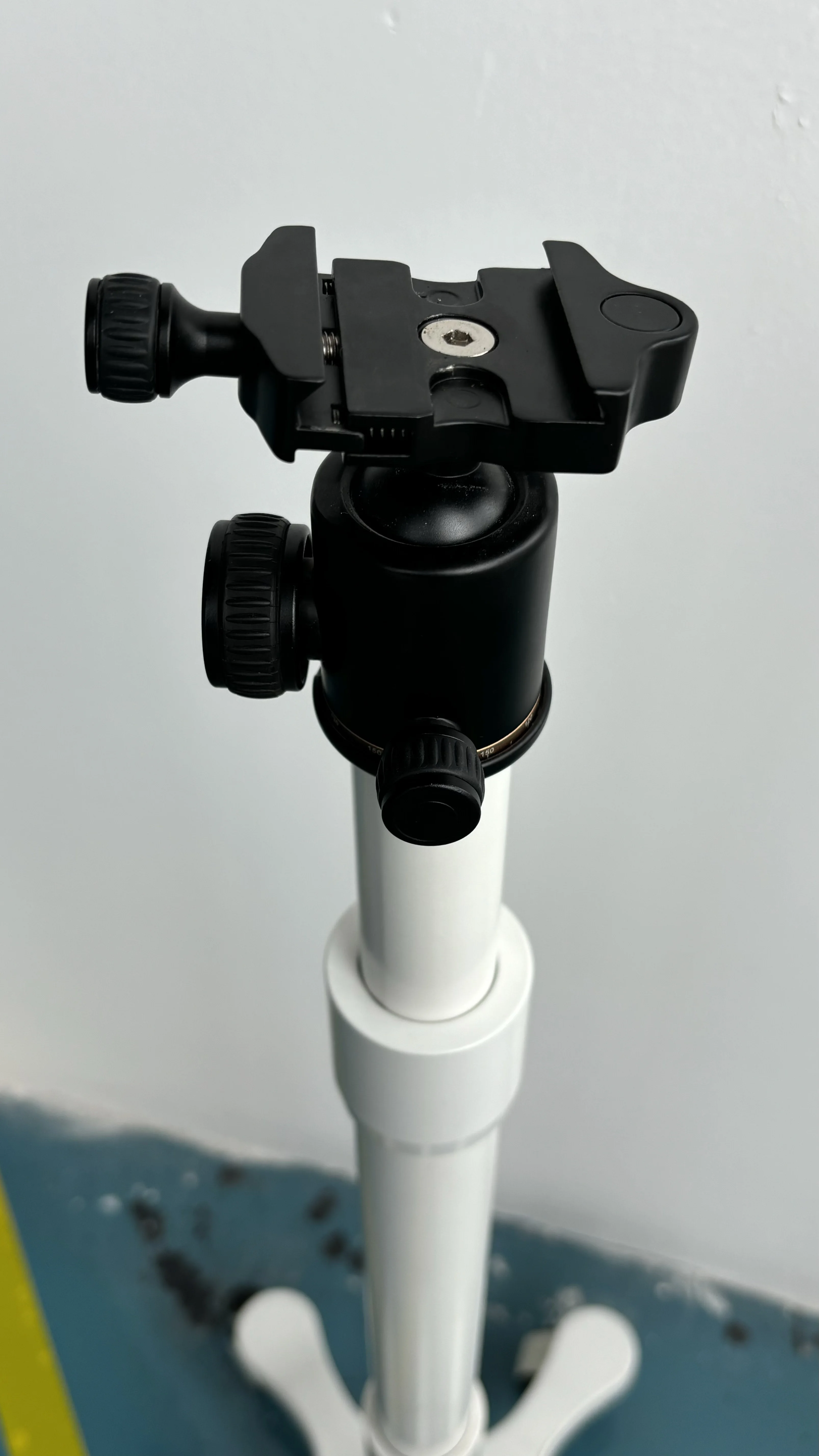

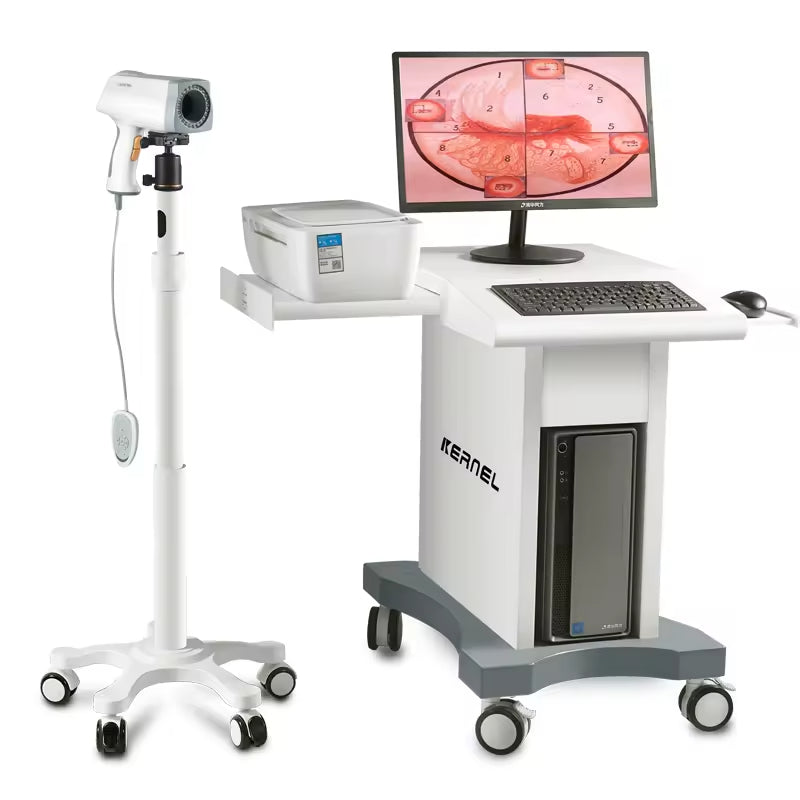

Remote handle, LCD rear screen, Fully Damped PTZ, adjustable height five corner trolley,
Independent R&D software,
Acetate timing, Zoom in&out, Editing Image, Calculate the perimeter of the damaged area, Foot switch photograph
Application : Colposcopy is a check of the cervix using a bright light and acolposcope. This is a large magnifying glass or microscope that helps doctor or nurse look closely at the surface of cervix. The colposcope sits on the outside of vagina and does not go inside.
It can be linked up to a computer screen to see the images more clearly. The test is usually done at a colposcopy clinic in the gynaecology department of a hospital. You will be seen as an outpatient by a specialist nurse or a gynaecologist.

Advantages:
** LED light source with special green green filter.
** 2.5 inch LCD with camera together, can directly show the image.
** WIN7 or WIN 8 operation system alternative with laptop and desktop.
** Multi- language operation system , in English, Spanish,Vietnamese, Russian .

Camera specification:
** CCD :1/4 color CCD ,800,000 pixels.
** Level resolution : 550TV Line
** Video output model: S-video PAL or NTSC model
** Focus Model: Manual or auto and auto-focus distance:150-500mm
** Lens SNR:50 dB
** Depth of view: 50 mm
** Working distance:30cm
**Light source: helogen light source,can be adjusted brightness,green filter by manual
** Can electronic zoom 16x, opitc zoom 20x.

Powerful software
Unique image capture function
With foot switch and software two ways of capturing, recording, and can realize dynamic, static, full screen image capture, 100
color images can be collected at each check
each inspection is able to collect 100 color images.
Powerful image processing function
With dynamic and static image comparison function, can be compared with standard image, and the collected images can be zoomed in,
zoomed out, negatively imaged, marked, text annotated, partial magnified , area perimeter calculated etc, which is more convenient
for doctors to identify the diseased tissue.
Professional clinical diagnostic function
Professional case database (up to 175),satisfied cases images can be added,suitable for clinical contrast.The professional
clinical diagnosis knowledge database provides a large number of editable clinical terms. With RCI automatic assessment system to
make the inspection more objective and accurate.

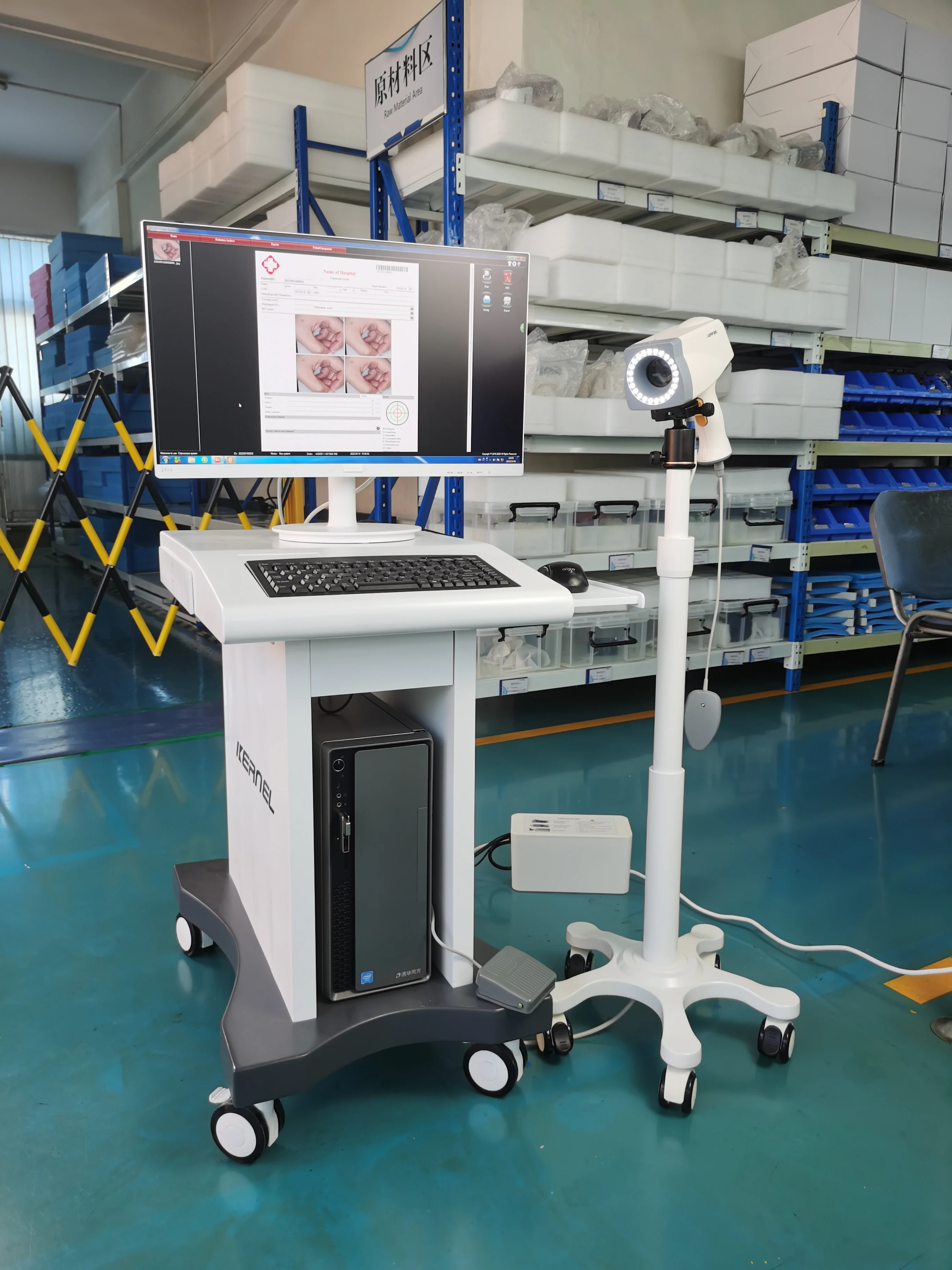

Rich report editing function
Built-in 19 standard case report template,convenient for editing and printing. It can display 1-6 pictures in the same screen .
The report template can be designed, modified, and output in PDF format. Provides evidence for prevention of medical disputes.
Convenient and quick query statistics function
Search cases via case number,name, bar code, date of birth and date of examination ;Image display,data
modification,save,re-examination and video reply to the retrieved cases.Convenient for hospital information management, improve
management efficiency.
EXCELLENT SOFTWARE FUNCTION
Detailed Images
The KERNEL KN 2200 and KN 22001 HD digital video colposcope systems have been trusted worldwide in assisting with the diagnosis of cervical cancer. Used in hopsitals, clinics, medical universities, telemedicine, assault advocacy programs as well as prosecutor's offices, the KN 2200 series colposcopes are built with quality and backed by a 1 year warranty. The KN 2200 is a Standard Definition Video Colposcope with a pixel count of 800,000. The KERNEL KN2200I HD High Definition Digital Video Colposcope contains an amazing 3.27 Mega Pixel SONY camera inside - the highest in it's class. Achieve crystal clear imaging every time you turn your new colposcope on. Both colposcopes come with ergonomically designed frame and remote, high quality SONY components, and a standard 1 year waranty. Made to last, KERNEL stands behind every product. See for yourself why your peers are choosing the KN 2200 series colposcopes by your first unit camera.

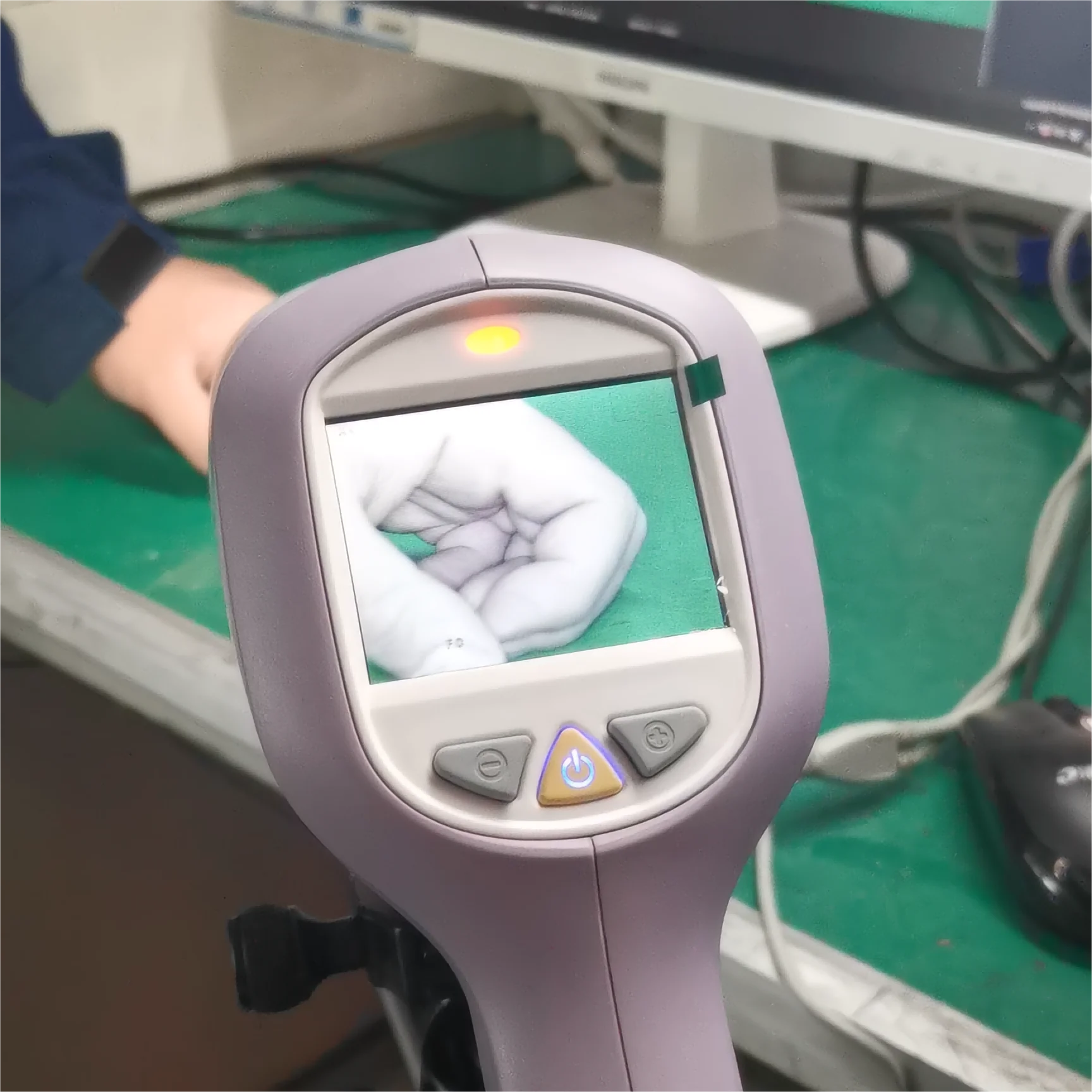

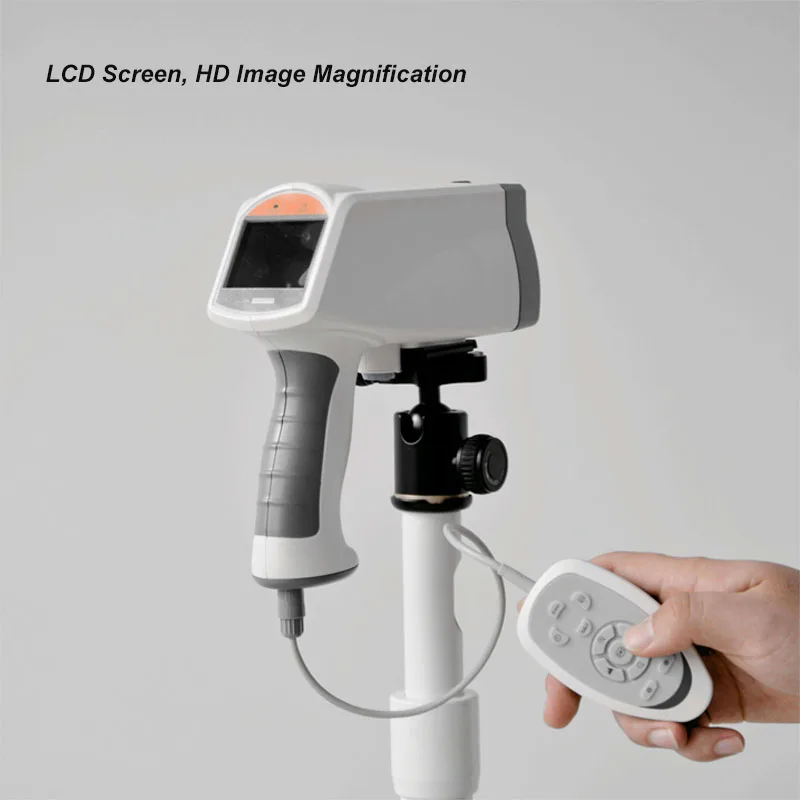

Design, ergonomics and personal work habits come together in the Mini LCD Viewing Screen, providing the most comfortable viewing

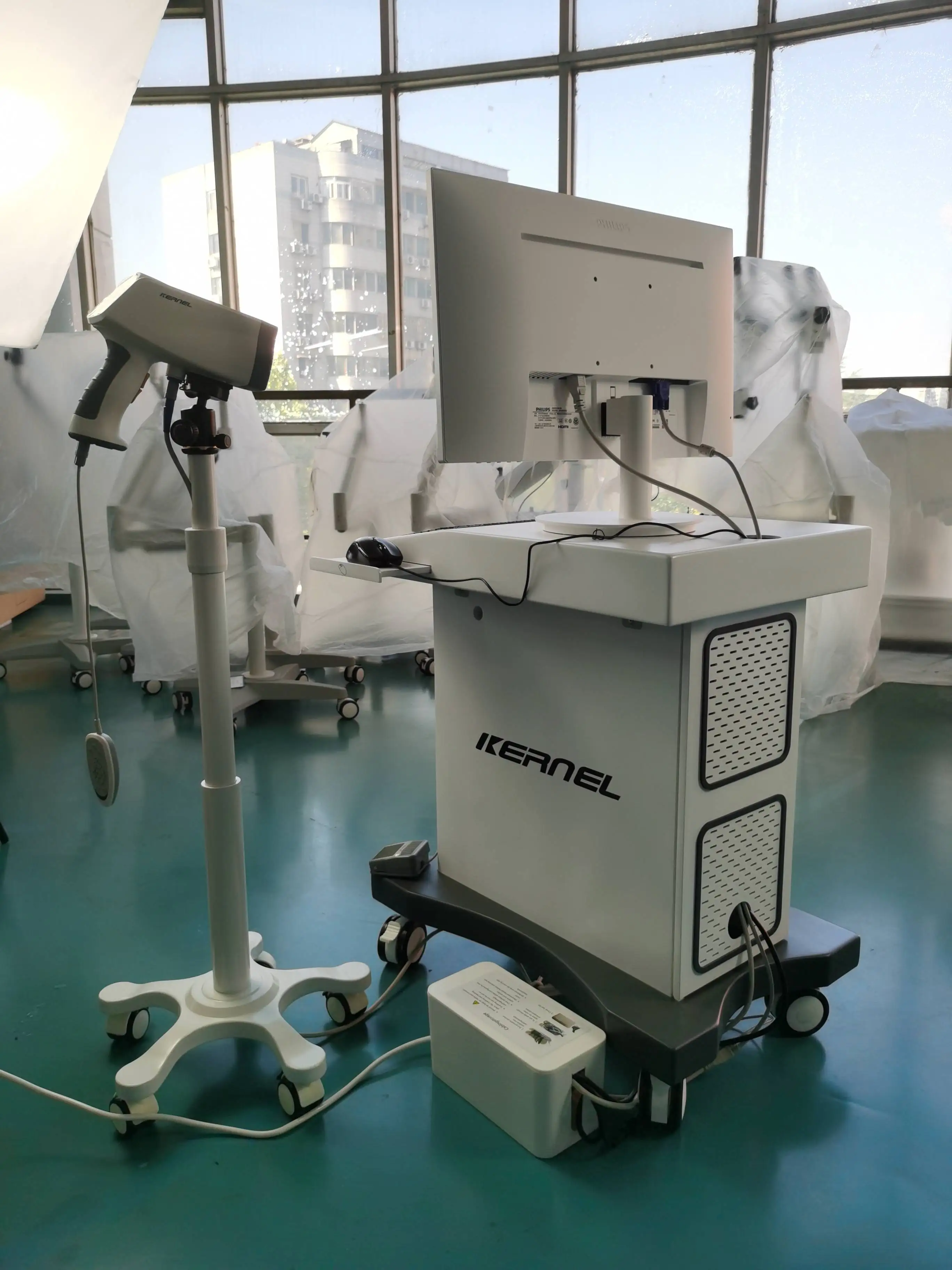

options for each individual user. While the KN 2200 series can be connected to a large TV screen, laptop, or desktop computer for
crystal clear image display, the Mini LCD will always be there for users who are used to working with a forward perspective.
The Auto Focus feature is one of the many benefits of the KN 2200 series that helps reduce your exam time by up to 50%. Unlike optical colposcopes which require the user to spend minutes at a time adjusting knobs and eye pieces, the KN 2200 series uses the point and click method. Simply point to the subject matter, zoom in or out to the desired magnification and the camera will focus for you almost instantly. When so much is riding on the details, the crystal clear high definition image provided by the KN22001 HD could make all the difference.

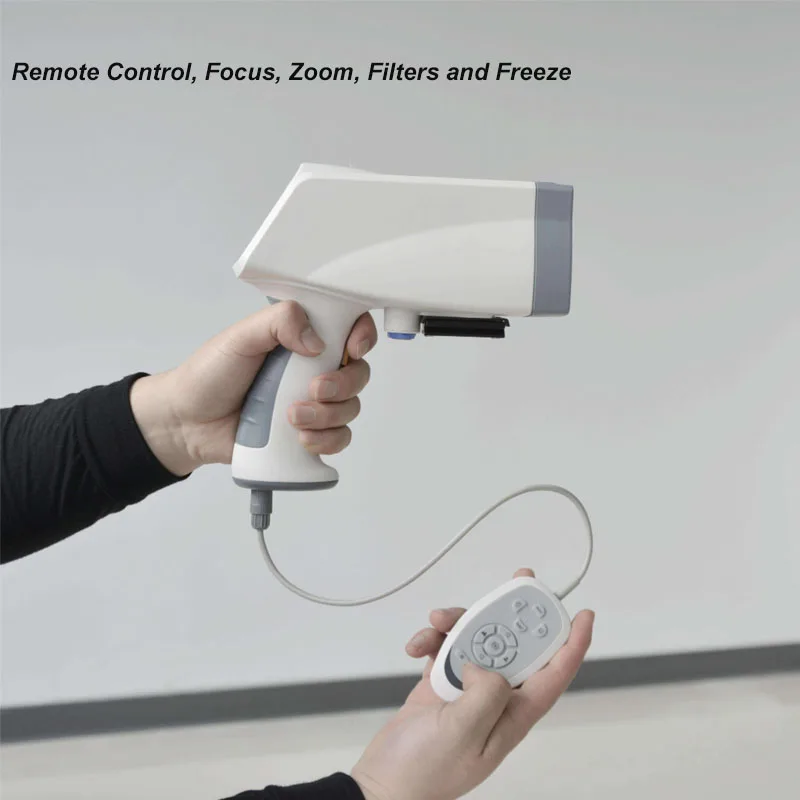

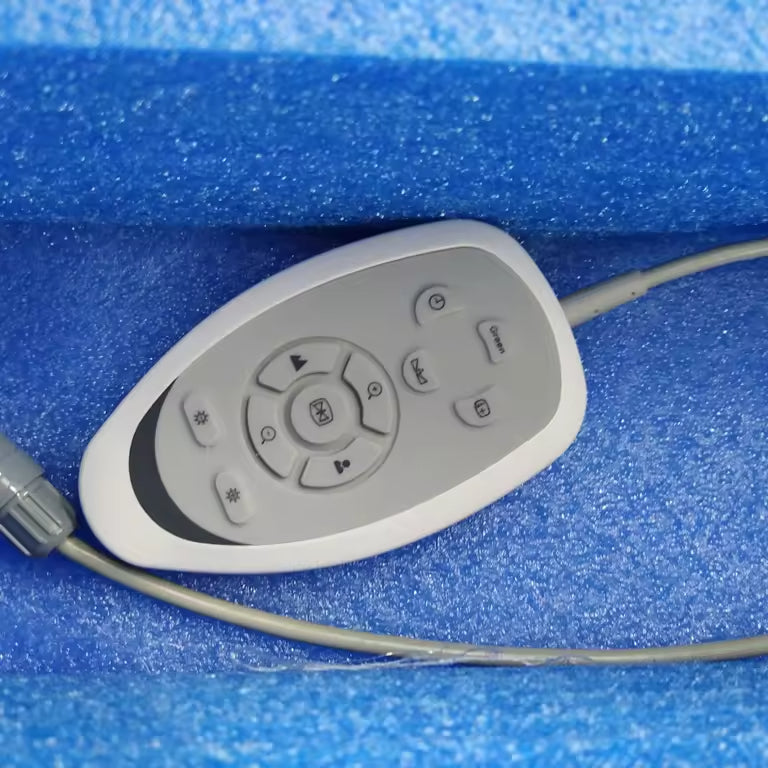

When zoomed in so tightly, even the tiniest movements are massive. That's why the adjustment options for the KN 2200 series colposcopes have been placed on a remote. Ergonomically placed within easy reach, the user can zoom in and out, adjust the green filter, increase or decrease brightness and much more with the Remote without moving the camera head. The image stays clear and stable no matter how many buttons are pressed.
