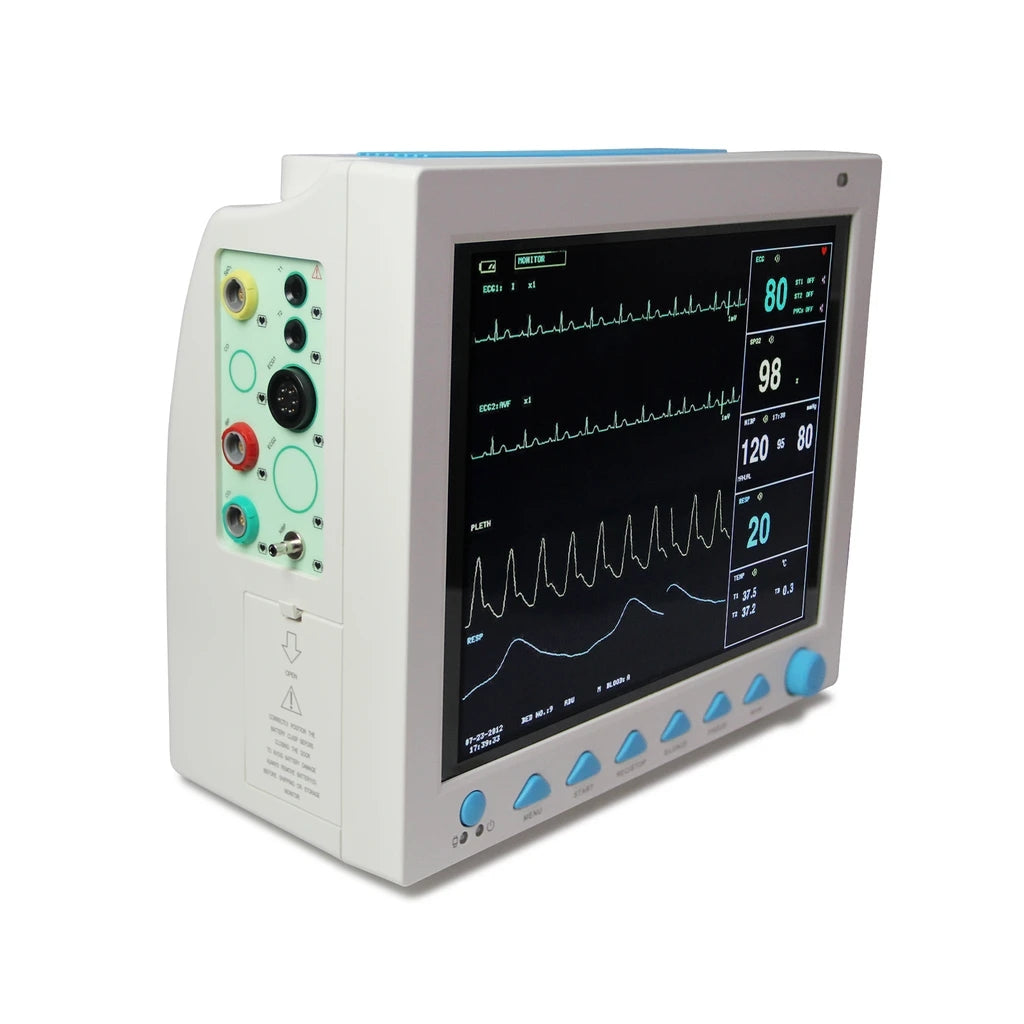

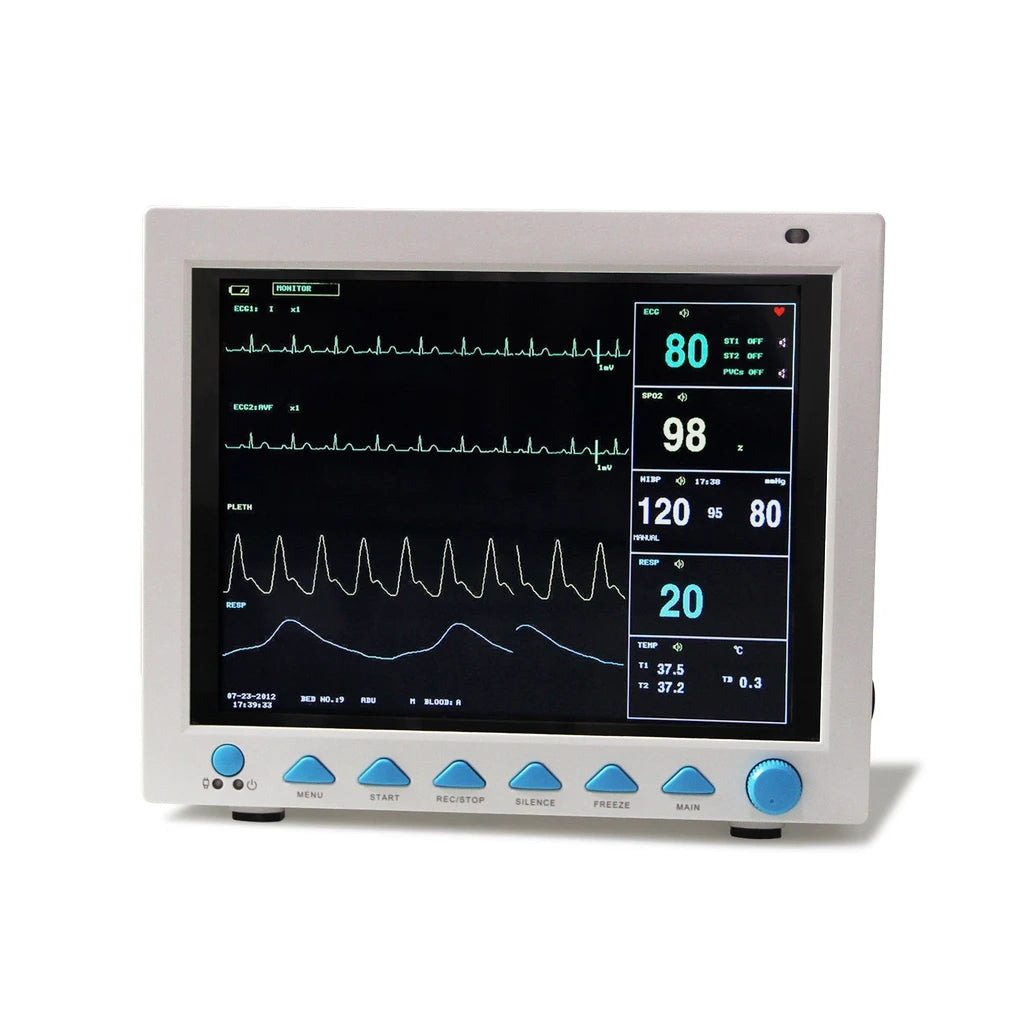

JYTOP FDA CE 12.1 inch Portable ICU/CCU CMS8000 Patient Monitor Vital Signs 6-Parameter + IBP

Sale price $733.00 Regular price $1,320.00

Shipping calculated at checkout.


The monitor has abundant functions that can be used for clinical monitoring with adult, pediatric and neonate. Users may select different parameter configuration according to different requirements. The monitor, power supplied by 100-240V~,50/60Hz,  adopts 12.1'' color TFT LCD displaying real-time date and waveform. It can synchronously display eight-channel waveform and full monitoring parameters equipped with an optional 48mm thermal recorder. The monitor can be connected to the central monitoring system via wire or wireless network to form a network monitoring system.



1)12.1'' TFT color LCD, multi-language interface(Simplified Chinese, Traditional Chinese, English, French, German, Turkish, Spanish, Portuguese, Italian, Dutch, Romanian, Russian, Kazakh, Polish, Czech).

2)Fanless design, quiet, energy-saving and clean, which reduces the possibility of cross-infection.

3)All-round monitor for adult, pediatric and neonate.

4)With standard interface, oxygen graph, trend graph, big character interface and view bed, convenient to observe.

5)Finish all operations by keys and knobs.

6)Maximum 8-channel waveform synchronous display.

7)Display 7-lead ECG waveform on one screen, cascade ECG waveform display

8)Adopt digital SpO2 technology, anti-motion and anti-ambient light interference, and measurement can be performed under the circumstance of weak filling.

9)Heart rate variability (HRV) analysis function

10)NIBP measurement mode: Manual/AUTO/STAT, storage for 4800-group NIBP data.

11)Review for 71 alarm events of all parameters and 60 arrhythmia alarm events.

12)Drug concentration calculation and titration table functions.

13)One-touch printing of trend graph

14)Connect to Central Monitoring System by 3G, Wi-Fi or wired mode.

15)AC/DC, built-in rechargeable lithium battery achieve uninterrupted monitoring.

16)Anti-high frequency surgical unit, defibrillation-proof (special leads are necessary).




Lead mode: 3-lead or 5-lead

Lead selection: I, II, III, aVR, aVL, aVF, V

Waveform: 5-lead, dual-channel

3-lead, single-channel

Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV

Scan speed: 12.5mm/s, 25 mm/s, 50 mm/s


Measurement and alarm range: 15~350 bpm

Accuracy: ±1 % or ±1 bpm, whichever is greater

Alarm accuracy: ± 2 bpm

Resolution: 1 bpm

ST-segment monitoring:

Measurement and alarm range: -2.0 mV ~ +2.0 mV

Accuracy: -0.8 mV~+0.8 mV  ±0.04 mV or ±10%, whichever is greater

Other range: unspecified



Pacemaker: yes


Method: R-F(RA-LL) Impedance

Respiration rate:

Measurement and alarm range: 0~150 rpm

Resolution: 1 rpm

Measurement accuracy: ±2 rpm

Alarm accuracy: ±3 rpm

Apnea alarm: 10~40s

Scan speed: 6.25 mm/s, 12.5 mm/s, 25 mm/s


Method: Oscillometry

Mode: Manual/AUTO/STAT

Measurement interval in AUTO mode: 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes

Measurement period in STAT mode: 5 minutes

Measurement and alarm range: 10 ~ 270 mmHg

Resolution: 1 mmHg

Cuff pressure accuracy: ±3 mmHg

Measurement accuracy:

Maximal mean deviation: ±5 mmHg

Maximal standard deviation: 8 mmHg

Over-pressure protection:

Adult mode: 297±3 mmHg

 Pediatric mode: 240±3 mmHg

 Neonatal mode: 147±3 mmHg


Measurement and alarm range: 0 ~ 100%

Resolution: 1%

Measurement accuracy: 70%~100%: ±2%;

0%~69%: unspecified


Measurement and alarm range: 30 ~ 250 bpm

Measurement accuracy: ±2 bpm or ±2%, whichever is greater


Channel: dual-channel

Measurement and alarm range: 0 ~ 50℃

Resolution: 0.1 ℃

Accuracy: ±0.1 ℃



Channel: dual-channel

Label: ART, PA, CVP, RAP, LAP, ICP, P1, P2

Measuring and Alarm Range: -10~300 mmHg

Resolution 1 mmHg

Accuracy: ±2% or 1mmHg, whichever is greater

▲Power supply: 100-240V~, 50/60Hz

▲Safety classification: Class I, type CF defibrillation-proof applied part

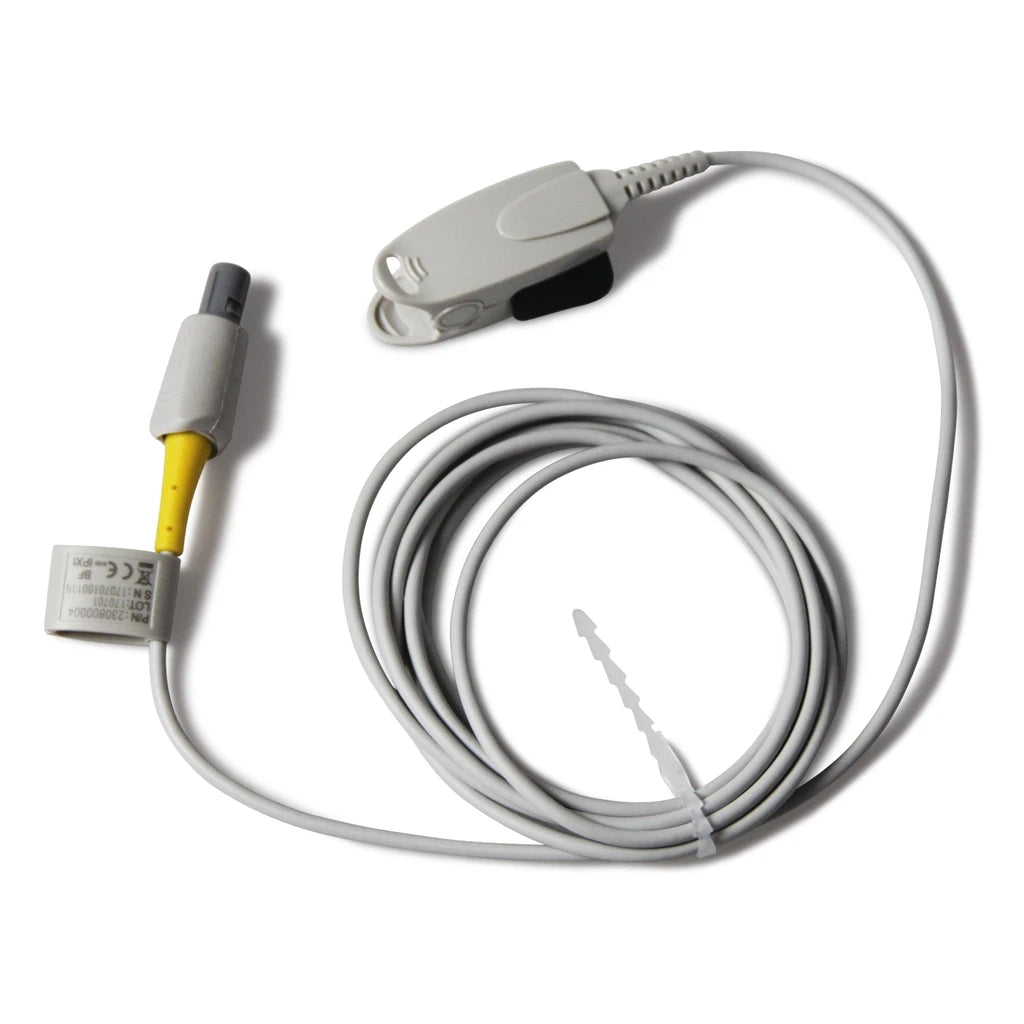

1)Adult fingertip SpO2 probe (5-pin)

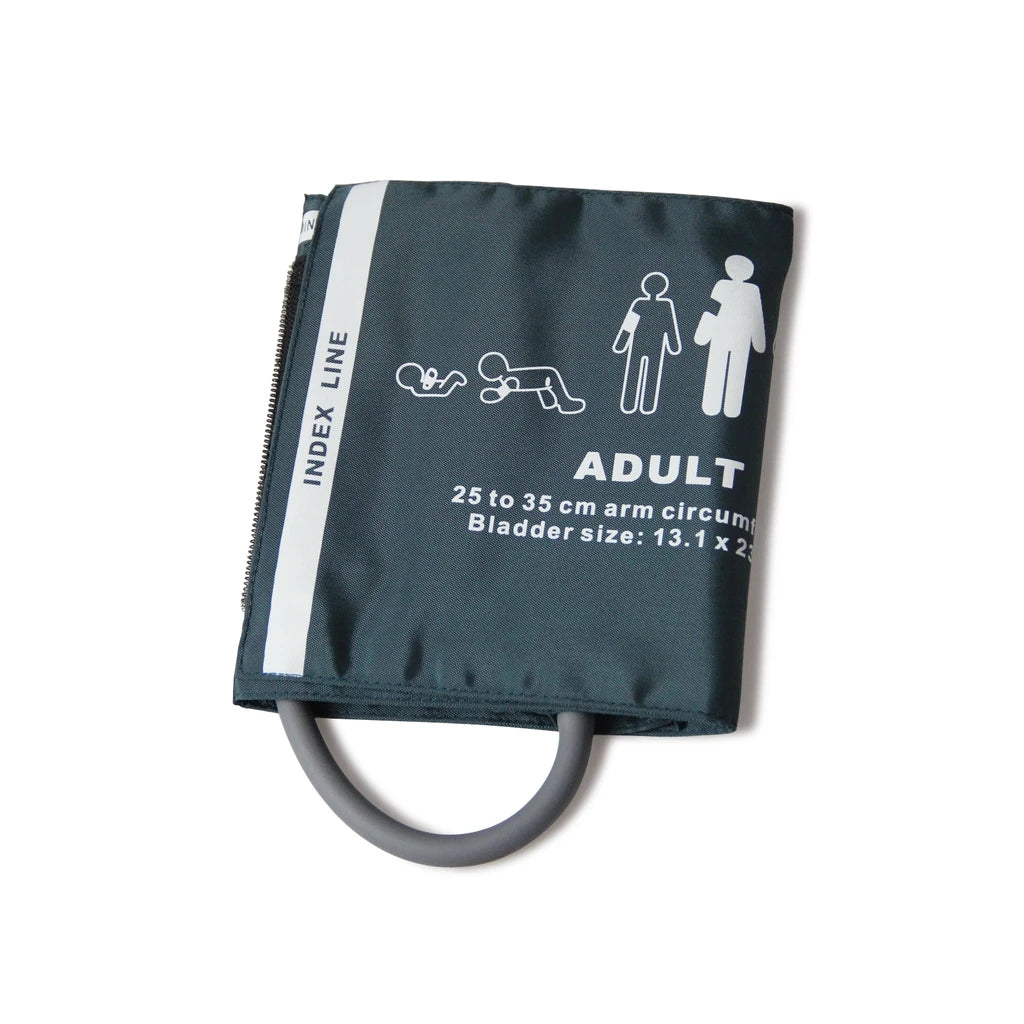

2)Adult NIBP cuff

3)NIBP extension tube

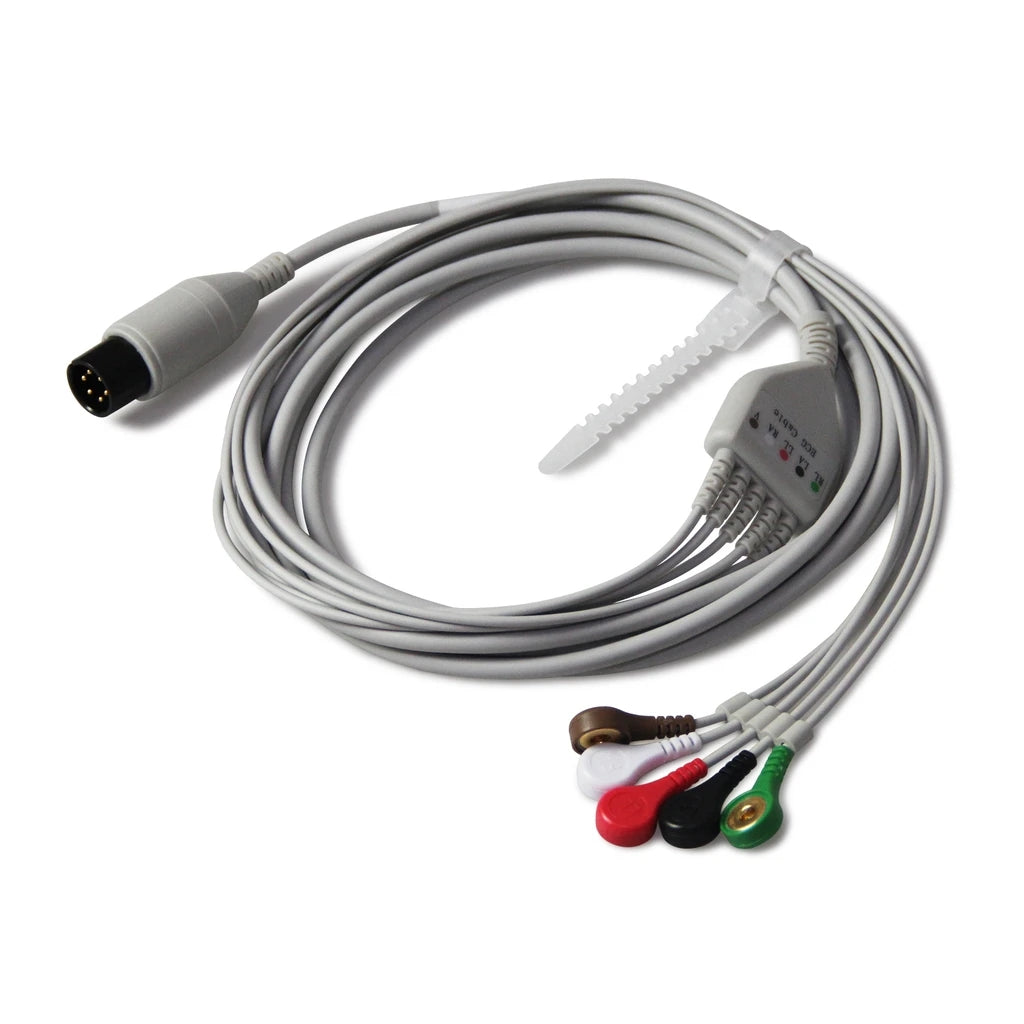

4)ECG lead cable

5)ECG electrode

6)Temperature probe

7)Power cord

8)User Manual (GB only)on request for other Language

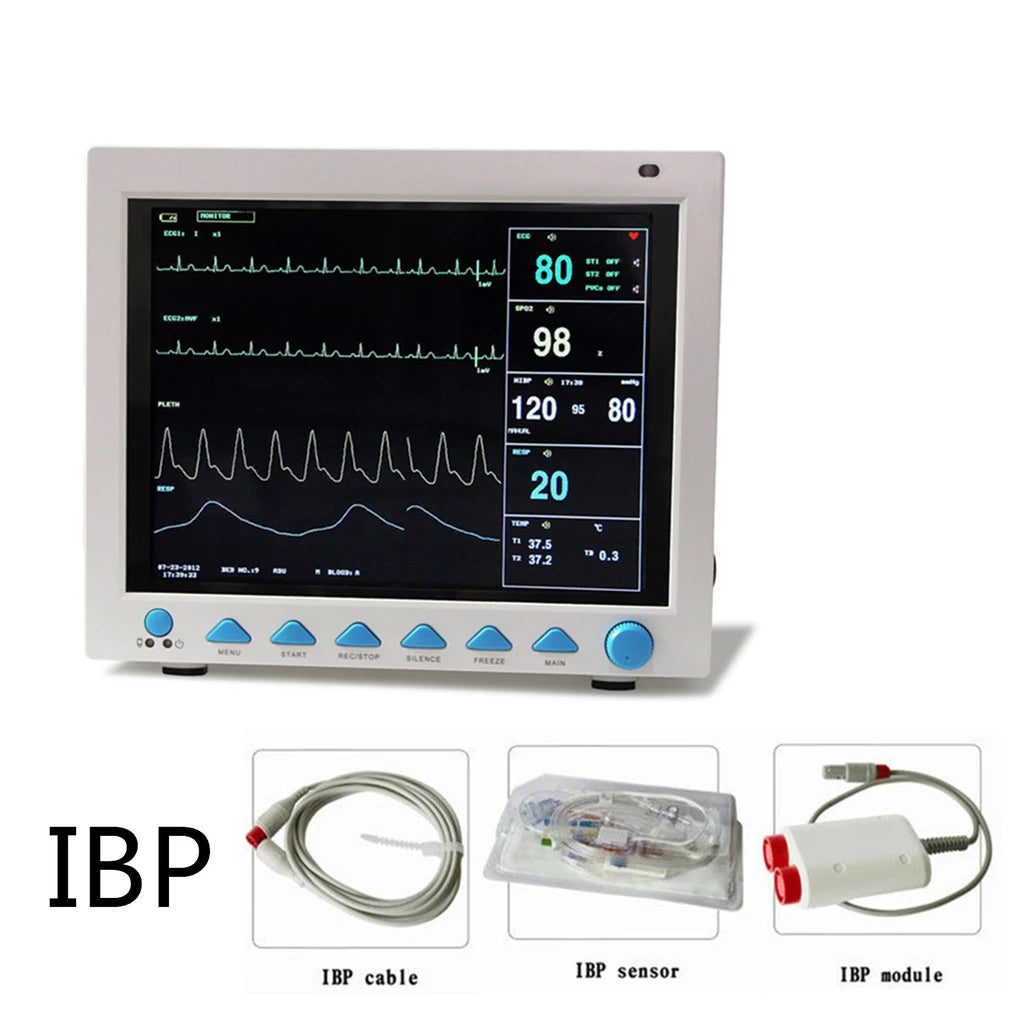

9)IBP Module (Ship from China)

Physical characteristic

Dimension: 314 mm(L) × 145 mm(W) × 264 mm(H)

Weight: 3.9 Kg
