High/Low Temperature Warm Heating Therapy TENS KM360
High/Low Temperature Warm Heating Therapy TENS KM360
Не удалось загрузить сведения о доступности самовывоза

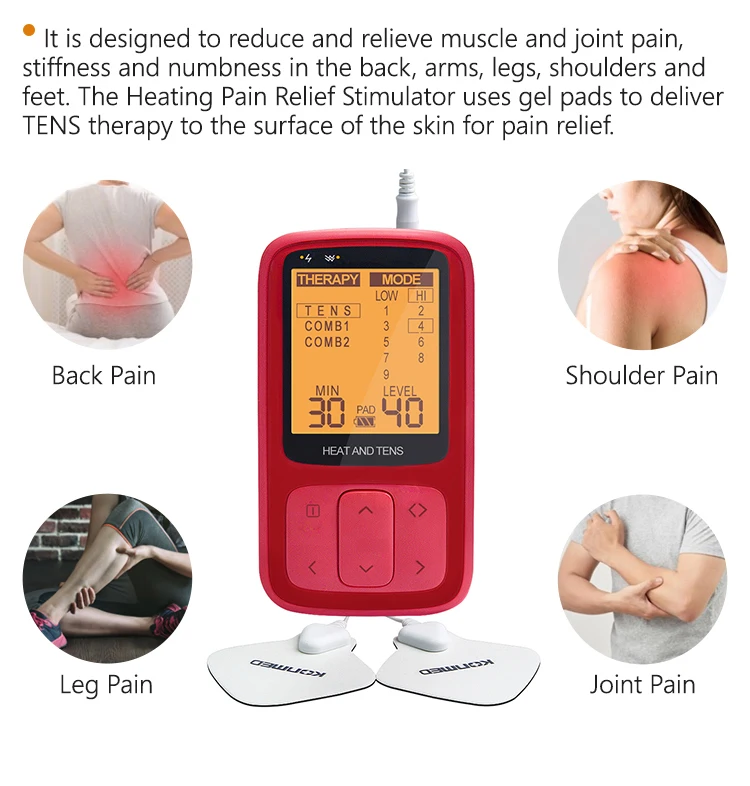

The Heating Pain Relief Stimulator is intended for: The relief of pain associated with sore or aching muscles of the lower back, arms, legs, shoulder or foot due to strain from exercise or normal household work activities.
How does the device work?

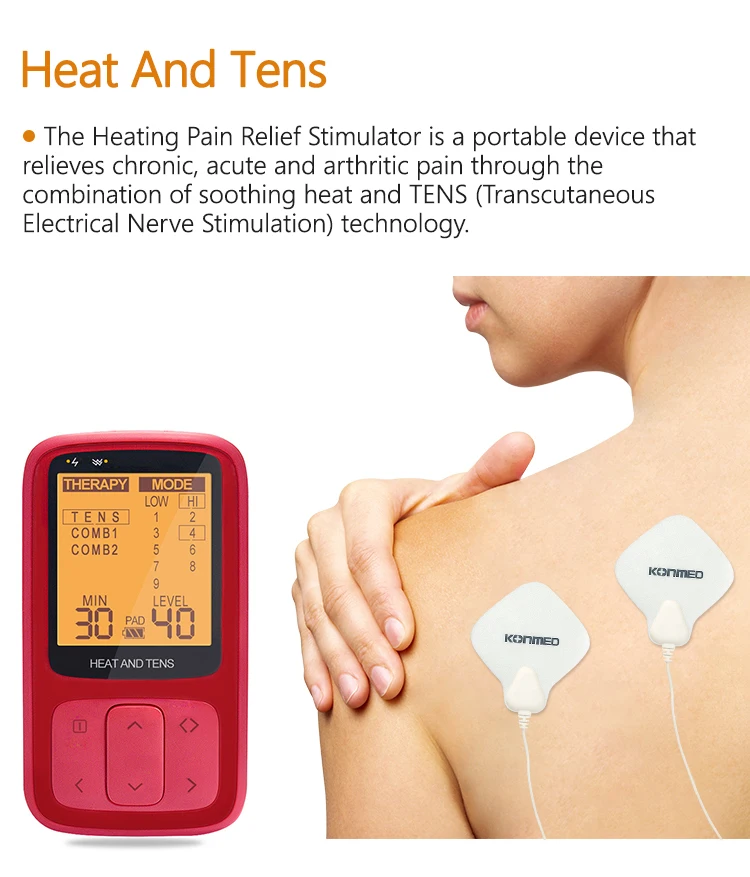

The Heating Pain Relief Stimulator is an innovative device that relieves chronic, acute and arthritic pain through the pain relief of TENS and soothing comfort of heat.
Physical therapists have been using the combination of heat and TENS for decades.
Scientific theory suggests that TENS therapy may work in several ways:
1. Gentle electrical pulses move through the skin to nearby nerves to block or shut out the pain message from ever reaching the brain from the source of the pain.
2. Gentle electrical pulses increase the production of the body’s natural pain killers, such as endorphins.
3. Blood circulation improves as muscles contract and relax with the flow of the electrical stimulation.
Product function:

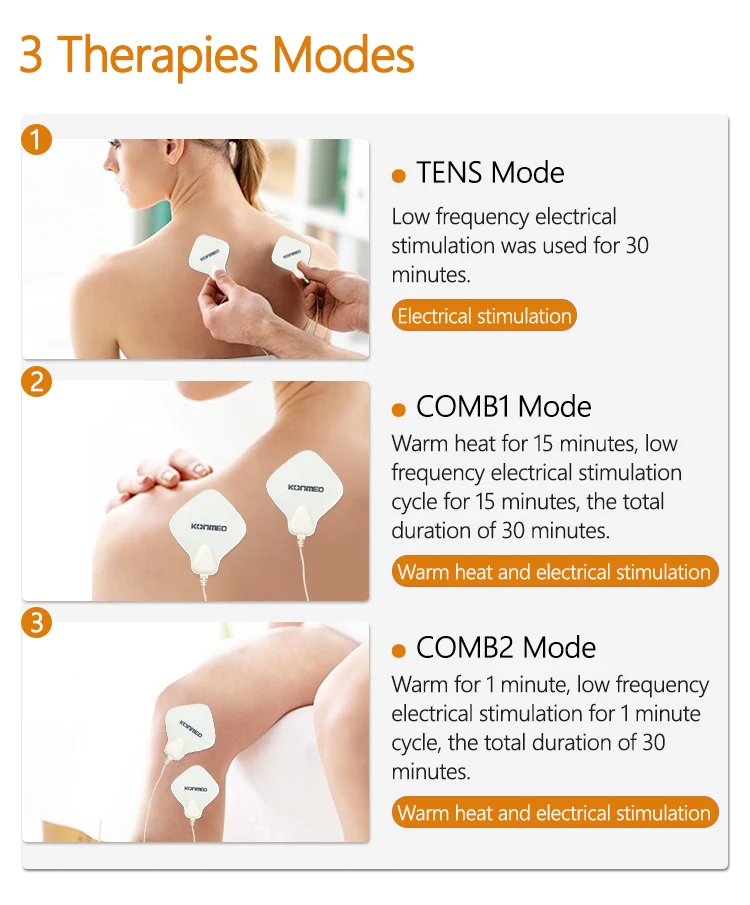

1) Treatment mode: 3 treatment modes are available;

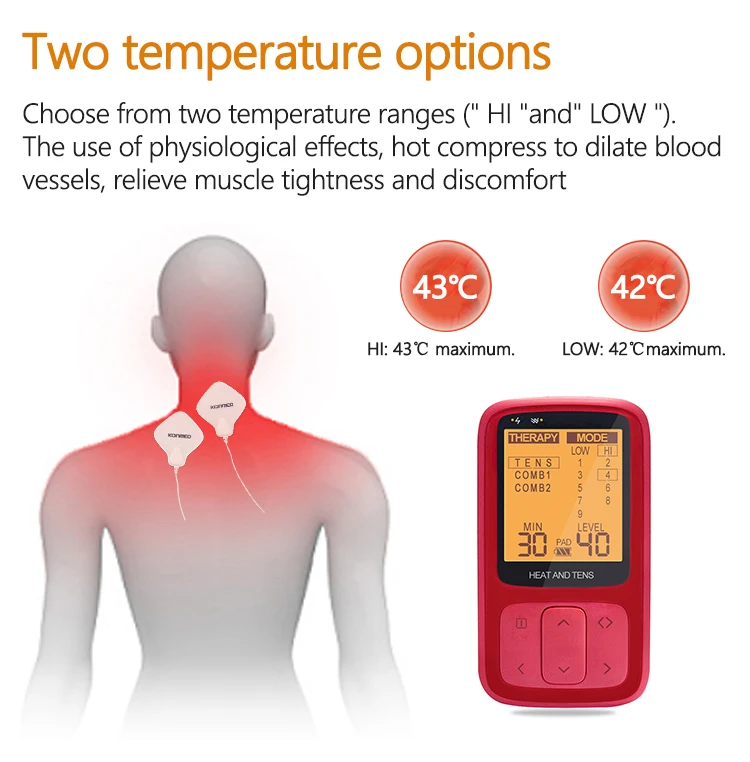

2) Temperature adjustment: switch from the second temperature ("low"and "high");
3) Low frequency electrical stimulation: 9 types of low frequency electrical stimulation modes are available;
4) Intensity: The intensity of treatment is shown numerically in the range of (0-99);
5) Remaining time: Remaining time of treatment is displayed in the range of (1-30) minutes;
6) Electrode shedding detection: If the pad detaches, the screen will blink.
7) High performance battery: Built-in 7.4V, 1200mAh large capacity rechargeable lithium-ion battery, can be recycled.

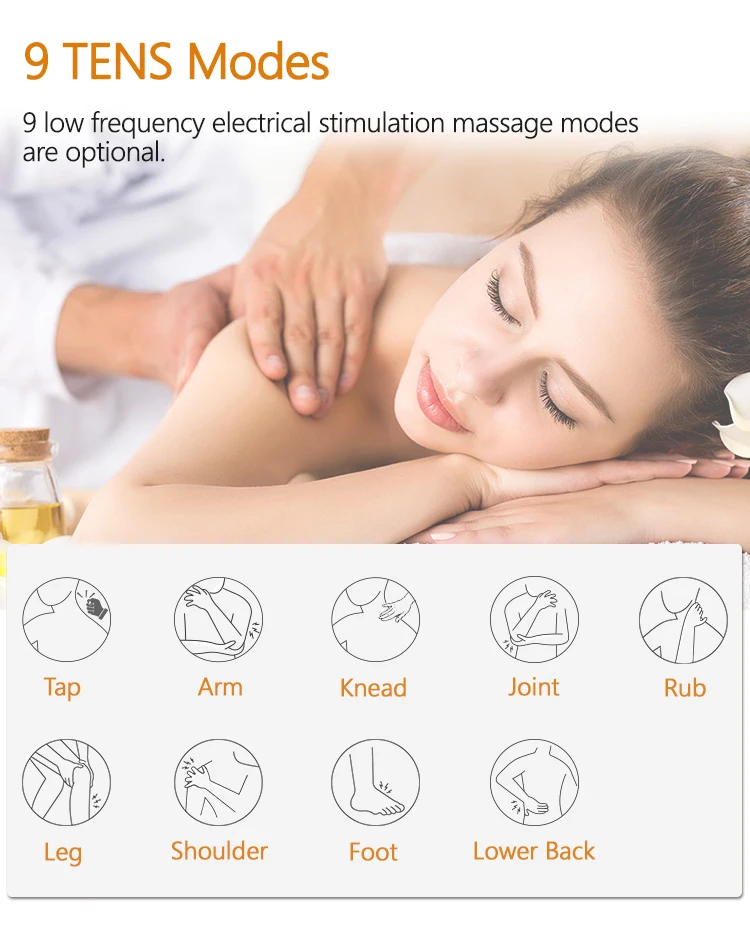

Which stimulation Mode to select?
P01: Tap. Series of low rate tapping sensations.
P02: Arm. Series of low to medium rate tapping, tingling and pulsing sensations.
P03: Knead. Series of medium rate pulsing sensations to mimic massage.
P04: Joint. Series of medium to high rate tapping, pulsing sensations.
P05: Rub. Series of high rate pulsing sensations to mimic hands rubbing.
P06: Leg. Series of low to medium rate tapping and rubbing sensations.
P07: Shoulder. Series of low to high rate tapping, pulsing, kneading and massage-like sensations.
P08: Foot. Series of low rate tapping, pulsing sensations.
P09: Lower Back. Series of high to low rate tingling sensations, followed by tapping. With higher intensity, you may feel kneading or massage-like sensations.

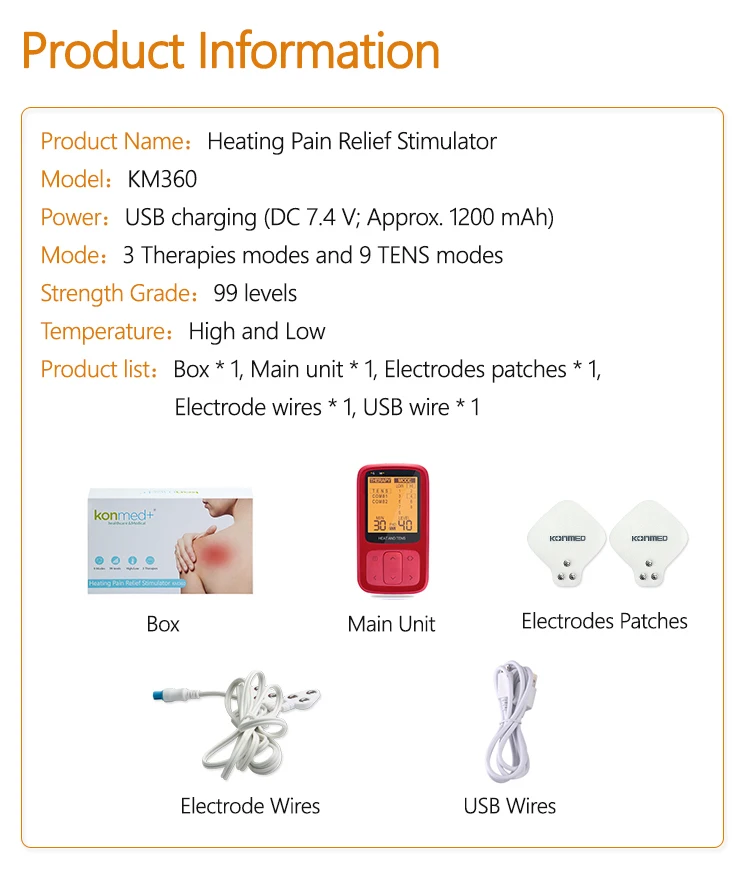

Product Specification:
1 Product Name: Heating Pain Relief Stimulator
2 Model: KM360
3 Dimension: 12*6.5*2.8CM
4 Weight: 160G （including batteries）
5 Battery: DC7.4V 1200mAh Lithium-ion battery；
6 Charge: DC5V/0.5A；
7 Lifetime: 3 years
Technical Data:
1 Maximum output current: 80mA@500Ω;
2 Working Frequency Range: 1-108Hz;
3 Pulse Width: 32-96us;
4 Strength Level: 99；
5 STIM Mode: 9 modes

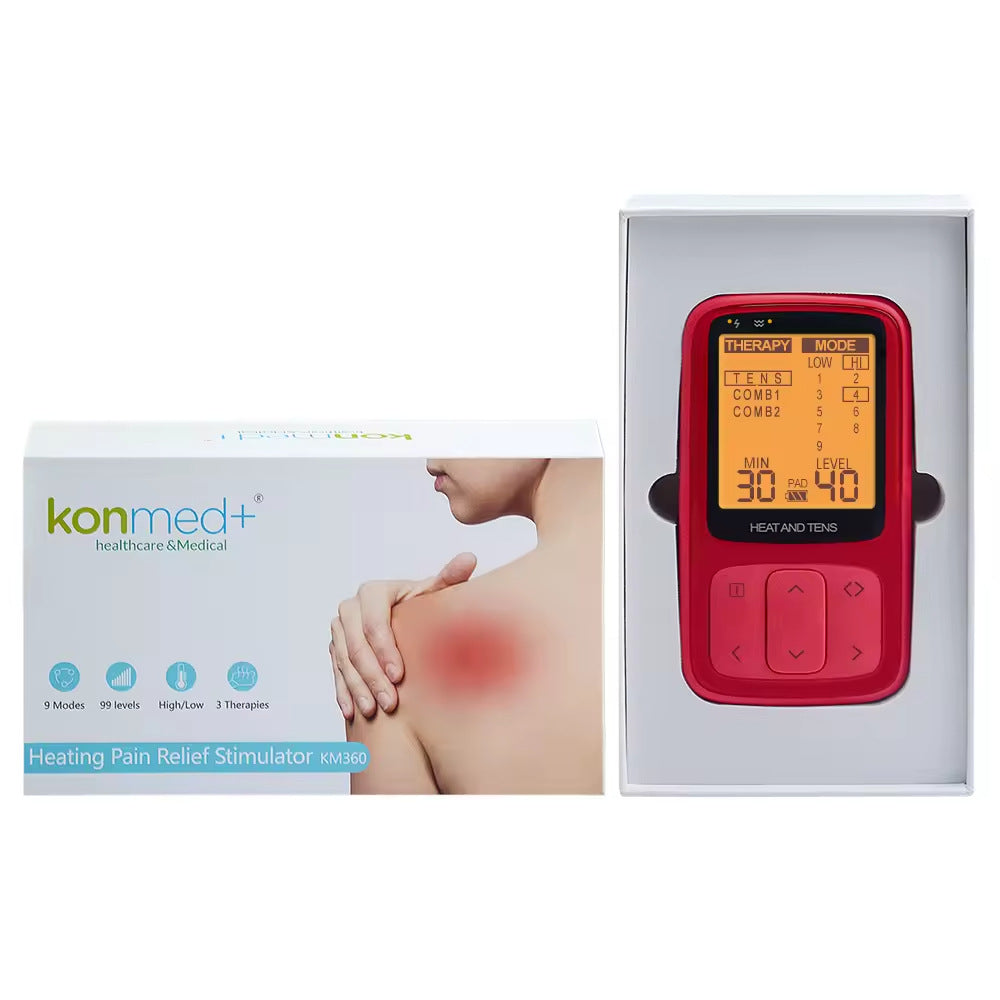

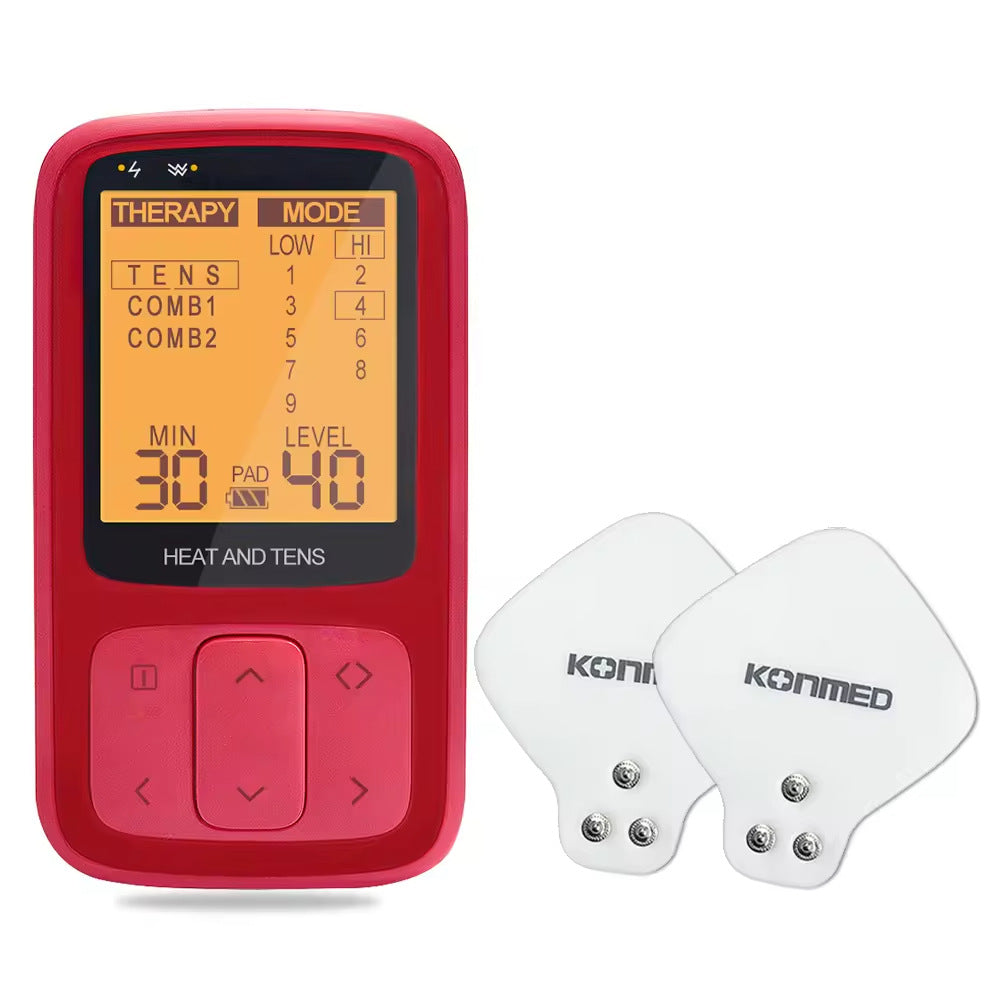

Package Including:

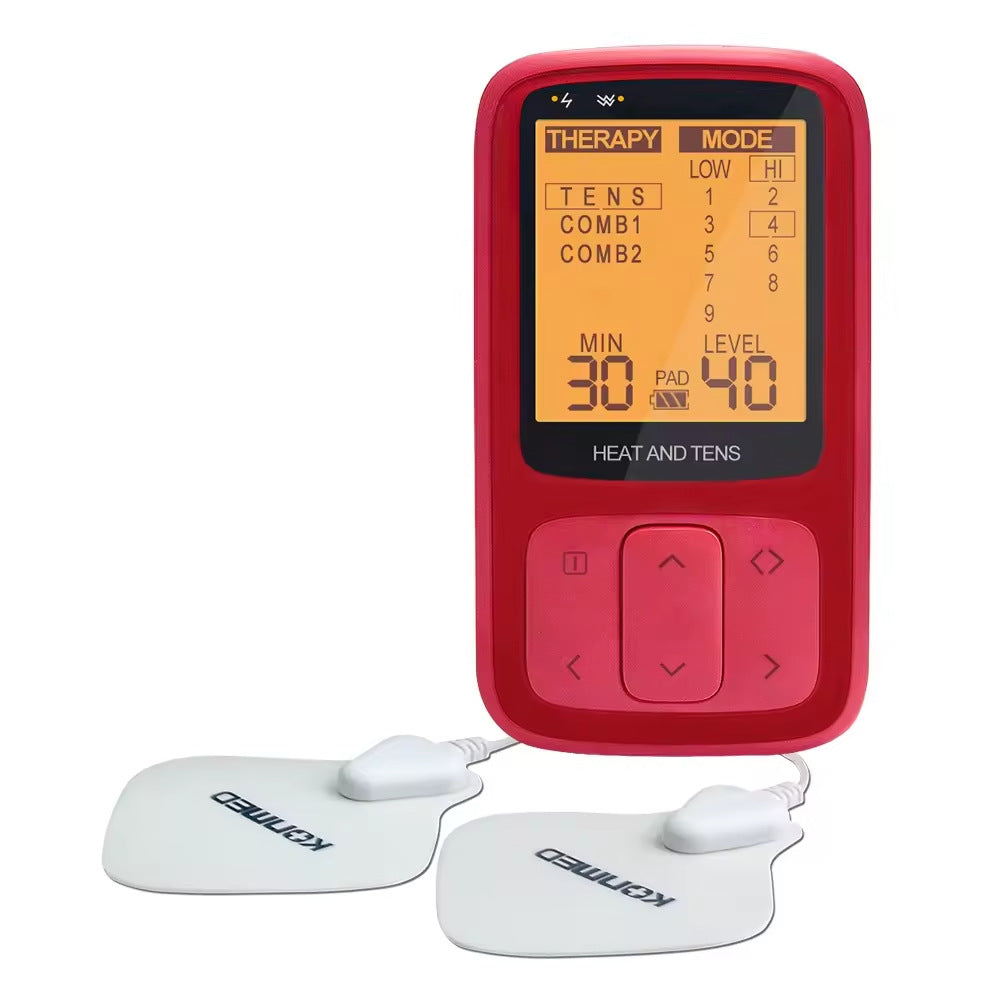

1 Main device;
1 White electrode wire;
1 Pair of electrode pads;
1 User manual
1 Charging cable
|
Product name
|
Heating Pain Relief Stimulator
|
|
Model
|
KM360
|
|
Material
|
Medical ABS, PVC, Silicone
|
|
Function
|
Heating therapy and TENS technique, relieve chronic, acute, arthritic pain
|
|
Feature
|
3 therapies modes, 9 TENS modes, 99 levels, high/low temperature
|
|
Contents
|
TENS device, electrode pads, electrode wire, USB charging cable, user manual
|
|
Color
|
Red
|
|

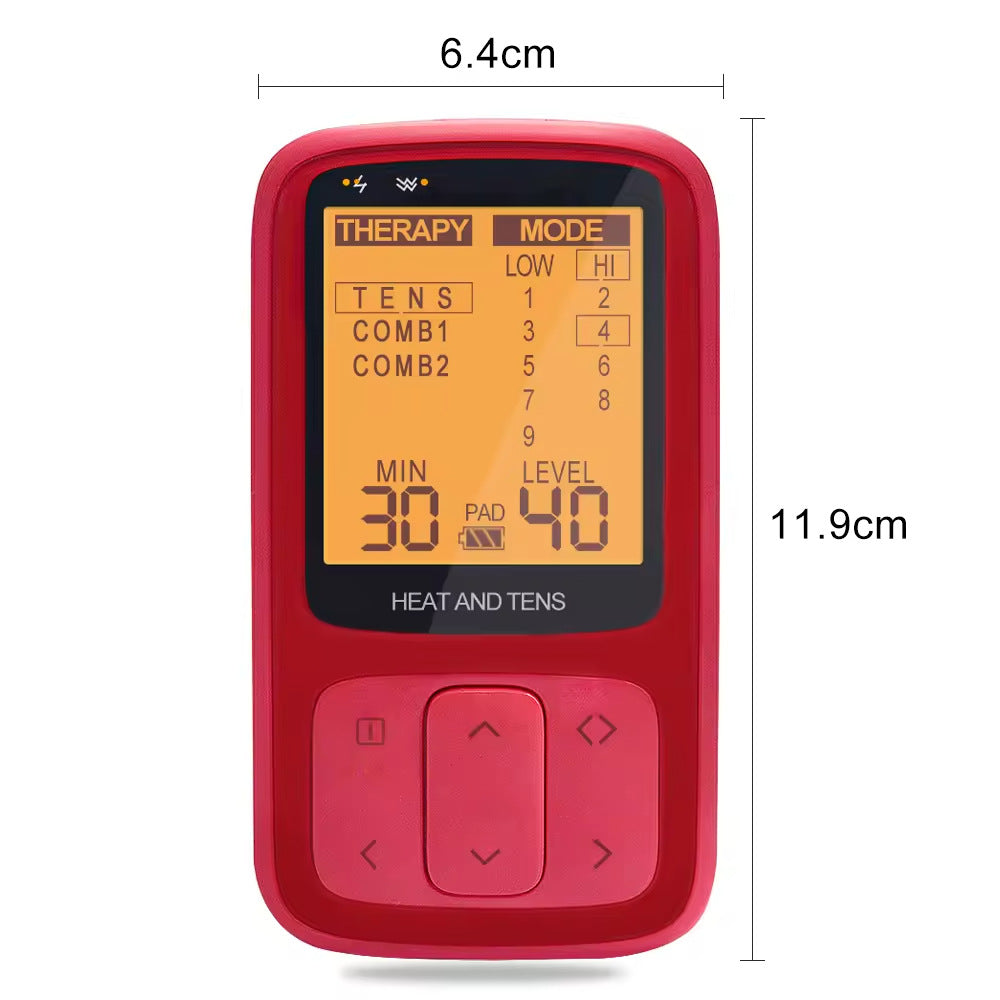

Size
|
11.9x6.4cm
|
|
Certificate
|
CE, ISO13485
|
|
Keywords
|
TEMS EMS pain relief stimualtor
|
|
Sample
|
Available
|
|
OEM/ODM
|
Support
|
Description
VERSATILE TREATMENT: Powerful, drug-free relief for chronic, acute and arthritis pain using a combination of soothing heat and TENS or OMRON TENS unit muscle stimulator alone [ore or achy muscles due to strain from exercise or normal household and work activities]
HIGHLY CUSTOMIZABLE: Safe and effective pain relief with 9 kind preset body pain modes (arm, lower back, leg, foot, joints, shoulder) and three massage modes (tap, knead, rub), each with 0-99 levels of intensity
UNIQUE PADS: Gel pads heat up to 43°C F for on-the-spot warmth (comparable to a low setting on a heating pad); TENS unit pads have a long life; can be used up to 30 times before replacing

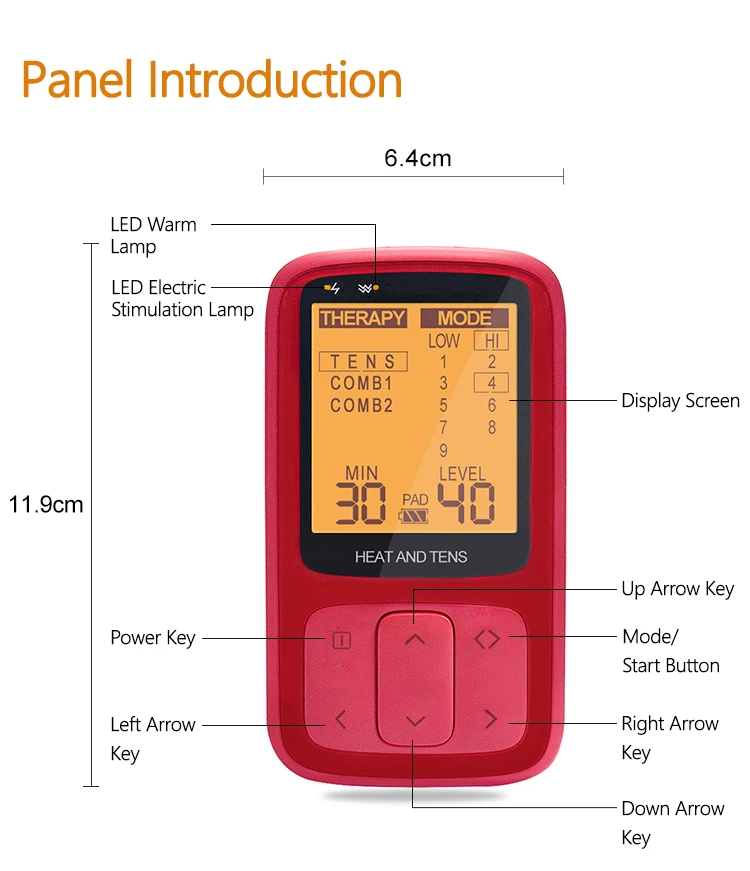

INNOVATIVE DESIGN: Sleek, compact design with easy-to-read display screen for convenient, portable use; includes rechargeable battery, which saves on having to buy replacements
HOW IT WORKS: Electrical nerve stimulation is applied to the surface of skin, which scientific theory suggests may block pain messages to the brain, increase blood circulation and stimulate endorphins .
What makes KONMED Total Power + Heat different?
The Total Power + Heat is a powerful, that relieves chronic, arthritic pain through the combination of soothing heat and TENS technology. Choose to alternate periods of TENS with Heat or TENS alone to reduce and relieve muscle and joint pain, stiffness and numbness in the lower back, arms, legs, shoulders, knees, elbows or feet.
*Refers to sore or achy muscles due to strain from exercise or normal household and work activities.
free pain relief—your way
Powerful and versatile, the OMRON Total Power + Heat TENS device allows you to customize your therapy. Choose how to relieve your pain—through the combination of soothing heat and TENS technology or TENS alone.
Our easy-to-use design lets you select your personal pain relief approach with 6 preset body pain modes (arm, lower back, leg, foot, joints, shoulder) and 3 massage modes (tap, knead, rub), each with 0-99 levels of intensity.
